A polyurea coating machine delivered to Canada proved to be an effective solution for localized pipeline anti-corrosion and small-scale waterproofing projects, where portability, temperature stability, and controlled spraying were critical requirements.
| Project | YGMC-500 high configuration PU Machine |
| Proportion Fixed Mainframe | 1 set |
| Self-cleaning spray gun | 1 set |
| Gross weight | 300KG |
| Net weight | 250KG |
| Feed pump | 2 sets |
| Heated hose | 49.2 ft (15 m) |
| Data ratio of raw materials | 1: 1 (fixed) |
| Raw material viscosity range | 200-1000CPS (at working temperature) |
| Max Working pressure | 35MPa (350 bar) |
| Maximum Fluid Temperature | 88 ° C (190 ° F) |
| Maximum output | 24kg/min (42 lb/min) |
| Each heater power | 6000W |
| Heating hose power | 1000W / 15m |
| Total power | 15000W |
| Voltage | 230V 1-ph / 3-ph 220V/400V 3-ph |
| Machine size | 870mm* 700mm* 1150mm |
Click Here to Get A Free Quote
Project Background:
Why a Small Polyurea Coating Machine Was Needed in Canada？
The Canadian customer is a local contractor specializing in pipeline maintenance and minor waterproofing work.
Their projects typically involve:
- Outdoor pipeline joints and fittings
- Localized corrosion repair
- Small-area waterproofing rather than continuous large-surface coating
Existing industrial spray systems were oversized for this scope, resulting in high setup time, material waste, and unnecessary operating costs.
The customer therefore looked for a small polyurea coating machine that could be transported easily and operated efficiently by a small team.
Click Here to Get A Free Quote
Key Challenges Faced by the Customer
The project presented several practical challenges:
- Cold and variable climate: Equipment needed stable heating and pressure control for consistent spraying.
- Limited work areas: Precise application was required on pipe joints and irregular surfaces.
- Mobility constraints: The machine had to be portable enough for frequent site changes.
- Cost sensitivity: The polyurea spray machine price had to match small project budgets without sacrificing reliability.
Equipment Selection Criteria
Before purchasing, the customer evaluated several machine types.
The final decision was based on the following technical considerations:
- Compact footprint suitable for transport in small vehicles
- Independent heating system capable of maintaining material temperature in low ambient conditions
- Stable pressure output for controlled polyurea spraying
- Optional compatibility with polyurethane materials for future insulation or coating work
Large engineering-grade machines were excluded due to excessive capacity and operating complexity.
Click Here to Get A Free Quote

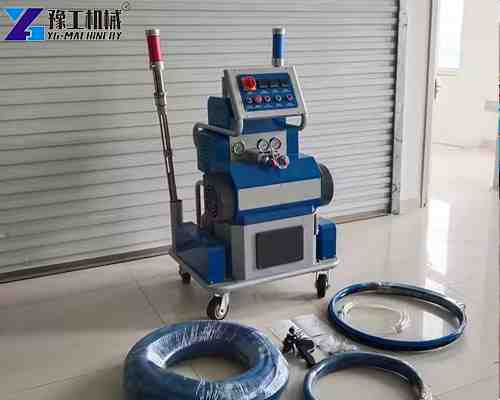

YG Machinery Solution: Small Portable Polyurea Spray Machine
YG Machinery supplied a portable polyurea spray machine specifically configured for localized coating applications.
Configuration Highlights
- Compact frame design for easy movement between job sites
- Independent heating system designed for cold-region operation
- Stable proportioning and pressure control for accurate spraying
- Optional setup for polyurethane spray machine or polyurethane foam machine use
The machine was delivered with clear operating guidance to ensure smooth commissioning and correct material handling.
Click Here to Get A Free Quote
On-Site Application and Performance
The equipment was primarily used for pipeline anti-corrosion coating, including:
- Pipe joints
- Connection flanges
- Repair areas with irregular geometry
During operation, the contractor reported:
- Uniform coating thickness
- Minimal overspray and material waste
- Short setup and shutdown time
- Reliable adhesion even in cooler outdoor conditions
The machine’s size allowed the team to complete multiple small jobs in a single day without extensive transport or preparation.
Project Results and Practical Outcomes
After several months of use, the customer confirmed measurable improvements:
- Reduced labor time compared with larger industrial machines
- Improved coating quality on localized areas
- Lower overall project cost for small-scale applications
- Expanded application scope, including minor waterproofing tasks beyond pipelines

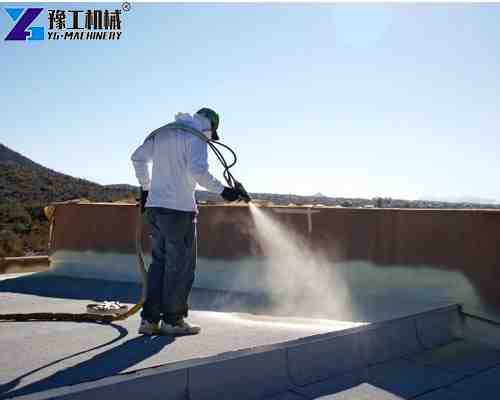

The contractor later reused the same machine for local roof detail waterproofing, validating its versatility.
Click Here to Get A Free Quote
Why a Small Polyurea Coating Machine Was the Right Choice?
This case demonstrates that machine size should match project scale, especially for contractors handling localized work.
Small polyurea coating machines are particularly suitable when:
- Coating areas are limited or irregular
- Frequent relocation between sites is required
- Budget control is important
- Multi-material capability adds operational flexibility
For continuous large-area coatings, industrial systems remain necessary, but they are not always the most efficient option.
Click Here to Get A Free Quote
FAQ – Polyurea Coating Machines for the Canadian Market
Q1: Can a small polyurea coating machine handle roof or pipeline work?
Yes. Portable machines are well suited for localized roof details, pipe joints, and small waterproofing areas.
Q2: Can one machine spray both polyurea and polyurethane?
Some configurations support dual-material use, functioning as a polyurea spray machine and polyurethane spray machine.
Q3: How do price factors differ between small and industrial machines?
Polyurea spray machine price depends on heating capacity, pressure system, material compatibility, and control accuracy. Small machines reduce initial investment and operating costs.
Q4: Is the machine suitable for cold regions like Canada?
With proper heating design and material handling, small machines can operate reliably in low-temperature environments.
Q5: Does YG provide technical support after delivery?
Yes. YG Machinery provides remote technical guidance, operation instructions, and spare parts support for overseas customers.
Click Here to Get A Free Quote
Practical Equipment Selection for Small-Scale Coating Projects
This Canadian case shows that a small portable polyurea coating machine can deliver reliable performance for pipeline protection and minor waterproofing tasks when selected based on real application needs rather than maximum capacity. For contractors managing localized projects, compact systems offer better efficiency, cost control, and operational flexibility.
