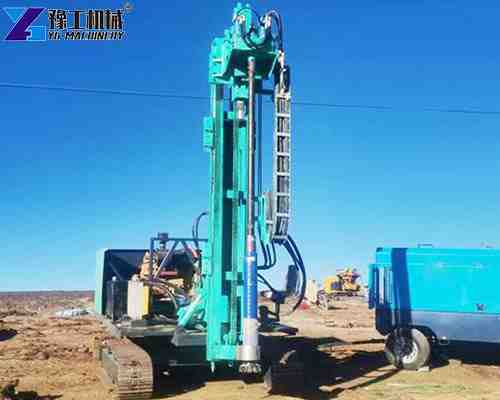

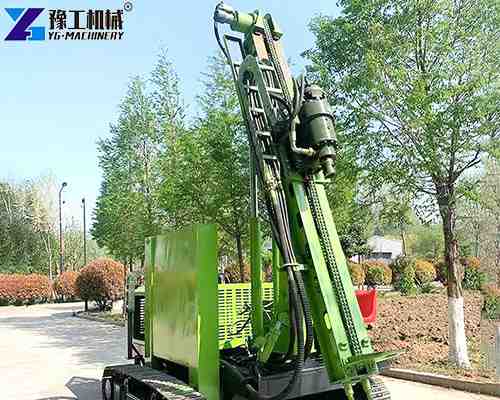

A solar pile driver (also known as a photovoltaic pile driver or PV pile driving machine) is a specialized construction equipment designed for efficient installation of photovoltaic foundation systems, including steel piles, H-beams, C/U-shaped posts, helical piles, and ground screws for solar mounting structures. It enables fast and precise pile installation for ground-mounted solar projects, ensuring stable and durable foundations across a wide range of soil conditions.
In modern solar farm construction, speed, accuracy, and consistency are essential for project success. A hydraulic solar pile driver significantly improves installation efficiency, reduces labor costs, and minimizes ground disturbance while maintaining high piling accuracy. YG Machinery provides professional solar pile drivers suitable for sandy soil, clay, gravel ground, and semi-rock formations, supporting global utility-scale photovoltaic projects.
Click Here to Get A Free Quote
Solar Pile Driver Parameters
| Crawler Solar Pile Ramming Machine – Hydraulic Hammer Type (requires compressor for rock drilling) | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Track shoe width | 400mm |
| Power Head | Hydraulic power | Engine | Yuchai four cylinder (85 kW) |
| Overall Quality | 6.5 T | Maximum drilling depth | 6m (can connect drill rods) |
| Maximum Drilling Diameter | 350 mm | Hydraulic hammer flow | 50–110 L/min |
| Impact Frequency | 350–800 bpm | Hydraulic system pressure | 25–30 MPa |
| Oil Pump | 40/40/32 | Travel speed | 5 km/h |
| Climbing Angle | 30° | Strong wind heat dissipation | Large radiator |
| Auger Drilling Solar Pile Driver-Rotary Drilling Type | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Rock Hardness (The hardness of rocks) | 6–20 F |
| Track Shoe Width | 400 mm | ||
| Engine | Yuchai four cylinder | Travel/Walking Speed | 5 km/h |
| Maximum Drilling Depth | 6 m (can install longer drill pipes) | Drill Pipe Speed | 180r/min |
| Maximum Drilling Diameter | 400mm | Sliding Frame Pitch Angle | 120° |
| Reducer Torque | 13,000N.m | Climbing Angle | 30° |
| Oil Pump | 40 / 40 / 32 | Drilling boom swing angle | Left & Right 150° (±75°) |
| Overall Weight | 6.5 T | Slide swing angle | Left & Right 40° |
Click Here to Get A Free Quote
What Is a Solar Pile Driver Used For?
It is used to drive metal piles—typically C-shaped, U-shaped, H-shaped, or spiral piles—into the ground to support photovoltaic mounting structures. Compared with traditional concrete foundations, driven piles reduce curing time, material costs, and environmental impact.
It is suitable for:
- Utility-scale solar farms
- Commercial and industrial PV projects
- Agricultural solar installations
- Distributed ground-mounted photovoltaic systems
For contractors and EPC companies, a photovoltaic pile driver improves construction efficiency and ensures uniform pile depth and verticality.
A solar pile driver is suitable for:
- Solar EPC contractors
- Renewable energy project developers
- Solar farm construction companies
- Equipment rental companies serving PV projects
For companies expanding renewable energy infrastructure, choosing a solar pile driver for sale rather than outsourcing pile installation can significantly reduce long-term construction costs.
Click Here to Get A Free Quote
Application Scenarios of solar farm pile driving machine
1.Utility-Scale Solar Farms

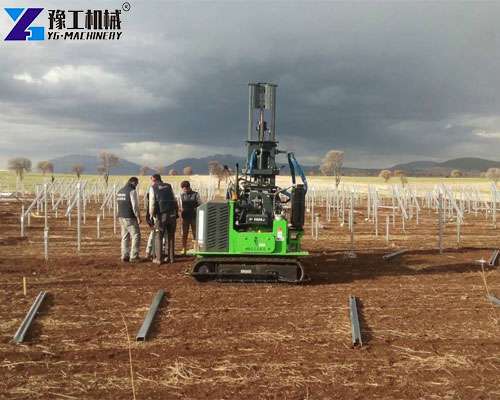

In large photovoltaic power stations, thousands of piles must be installed accurately. A solar farm pile driving machine enables fast, repeatable installation across large areas.
2.Agricultural and Desert PV Projects
Solar pile drivers are commonly used in:
- Sandy soil
- Loess soil
- Clay and mixed ground
- Semi-rocky terrain (with pre-drilling)
Their adaptability makes them suitable for solar farms in deserts, hills, and reclaimed land.
3.Distributed Ground-Mounted Systems
For smaller PV projects, compact or crawler-mounted photovoltaic pile drivers provide flexibility in narrow or uneven spaces.
4.Mountainous and Uneven Terrain
Crawler-mounted photovoltaic pile drivers can operate on slopes and uneven construction sites, making them suitable for hilly solar farm projects.
Click Here to Get A Free Quote

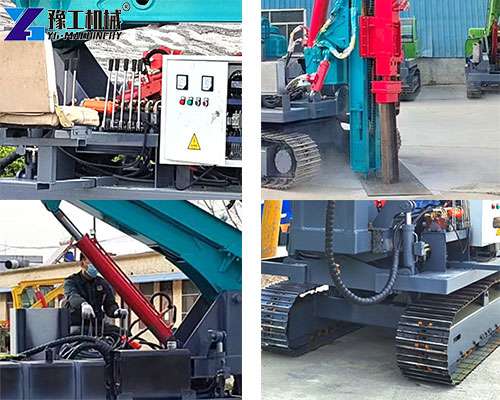

Key Features of Hydraulic Solar Pile Driver
1.Fast Installation Speed
Compared with manual foundation construction, hydraulic solar pile drivers significantly improve installation efficiency.
Some utility-scale projects can install hundreds of piles per day.
2.Lower Construction Cost
Pile foundations eliminate large concrete consumption, reducing transportation, labor, and curing costs.
3.Strong Terrain Adaptability
Crawler solar pile drivers can operate in: Desert environments, Muddy ground, Mountainous terrain, Gravel soil, Remote construction sites.
4.High Installation Accuracy
Hydraulic mast leveling systems help maintain vertical pile installation and reduce structural deviation.
5.Multi-Function Configuration
YG solar pile drivers can be configured for different foundation conditions and pile installation requirements.
Depending on the project, the machine can be equipped with:
- Hydraulic hammer head for direct pile driving

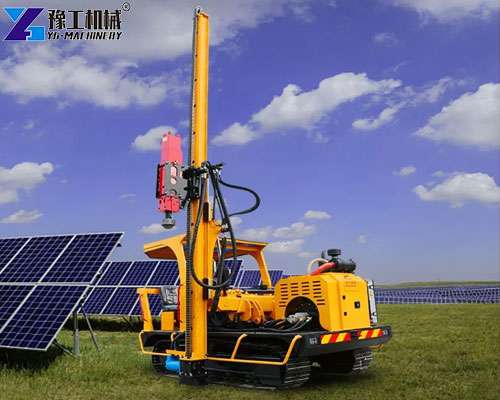

- Rotary drilling head for pre-drilling or screw-pile-related applications
- DTH drilling system for hard or semi-rock formations, used together with an external air compressor
- Dual power heads for projects requiring both drilling and pile driving
The actual configuration should be selected according to pile dimensions, soil conditions, required drilling depth, and installation method.
Working Principle of a Photovoltaic Pile Driver
A photovoltaic pile driver works by converting hydraulic or electric energy into vertical impact force or vibration to drive piles into the ground.
Typical working steps:
- Position the pile using a guiding mast
- Adjust vertical angle with a leveling system
- Apply impact or vibration force
- Drive the pile to a preset depth
- Retract and move to the next position
Most solar pile drivers are equipped with hydraulic control systems to ensure accuracy and repeatability.
Click Here to Get A Free Quote

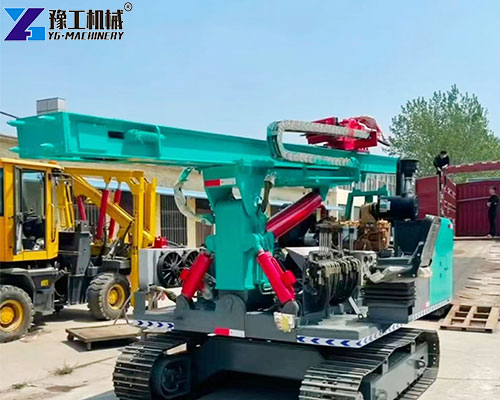

What Affects Solar Pile Driver Price?
The final price depends mainly on the required machine configuration, including:
- Hydraulic hammer or rotary drilling head
- Single or dual power-head configuration
- Maximum drilling diameter and depth
- DTH drilling requirements
- Required drill rods
- Pile dimensions and clamping system
- Engine and hydraulic configuration
- Customized mast or working dimensions
- Spare parts and optional accessories
Send us your pile dimensions, required installation depth, soil conditions, and project location to receive a suitable configuration and quotation.
How to Choose the Right Photovoltaic Pile Driver?
The right photovoltaic pile driver should be selected according to the actual project requirements rather than machine size alone. Key factors include:
- Soil and ground conditions
- Pile type, size, and installation depth
- Required daily installation capacity
- Whether pre-drilling is required
- Site terrain and accessibility
For a more detailed selection process, including how to match the piling and drilling configuration to different soil conditions and pile requirements, see our Solar Pile Driver Selection Guide.
Click Here to Get A Free Quote
Case Study: YG-699-3 Solar Pile Driver for H-Pile Installation in Malaysia
A solar EPC contractor in Malaysia required an efficient solution for installing approximately 500 mm H-shaped steel piles for a photovoltaic project.
To match the project requirements, YG Machinery supplied the YG-699-3 dual-power-head solar pile driver, equipped with a hydraulic hammer piling head and a high-torque drilling head. This configuration allows the machine to perform both pile driving and pre-drilling, providing flexibility for varying ground conditions.
The target installation capacity was approximately 300–500 piles per day, depending on pile dimensions, soil conditions, installation depth, and the actual working method.
Case Study: Rocky Ground Solar Project in Chile
A photovoltaic contractor in Chile required pile installation in semi-rock formations with dense gravel layers.
YG Machinery recommended:
- Hydraulic hammer piling system
- DTH pre-drilling solution
- Air compressor integration
The combined drilling and pile driving solution successfully improved installation accuracy while protecting pile structures from deformation.
FAQ about photovoltaic pile driver
1. What is the typical price range of a solar pile driver?
The price depends on machine configuration, piling capacity, and drilling functions. Small models are suitable for compact PV projects, while heavy-duty machines are designed for large solar farms.
2. Can one solar pile driver handle different pile types?
Yes. Depending on the machine configuration, YG solar pile drivers can be adapted to different steel pile profiles, including H-piles and C/U-shaped posts. The required hammer, drilling head, clamp, and other components should be selected according to the pile dimensions and installation method.
3. Is a solar pile driver suitable for rocky ground?
Yes. For rocky or hard ground, pre-drilling with a DTH drilling system is usually recommended before pile installation.
4. How does the machine perform under different soil conditions?
YG solar pile drivers support impact piling, vibration piling, and auger drilling, making them suitable for sandy soil, clay, gravel, and semi-rock formations.
5. What maintenance does a photovoltaic pile driver require?
Routine maintenance includes checking hydraulic hoses, lubricating moving parts, inspecting hammer components, and replacing hydraulic oil regularly.
7. Is operation training provided?
Yes. YG Machinery provides operation training, maintenance guidance, and technical support to help customers use the equipment safely and efficiently.
8. What engine does the YG solar pile driver use?
The YG-699-3 configuration uses a Yuchai four-cylinder diesel engine rated at approximately 85 kW. The engine and hydraulic system are matched to the machine’s piling and drilling requirements.
9. Besides photovoltaic projects, what else can the machine be used for?
It can also be used for guardrail installation, fence piling, billboard foundations, and small construction foundation projects.
10. How many piles can a solar pile driver install per day?
Installation capacity depends on soil condition, pile size, and working mode. Hydraulic solar pile drivers are designed for high-efficiency piling in solar farm projects.
11. Why choose a crawler solar pile driver?
Crawler models provide better stability and mobility on muddy, sandy, or uneven construction sites.
Maintenance and Operating Considerations
Regular maintenance ensures stable performance and longer service life.
Basic maintenance practices:
- Daily inspection of hydraulic hoses and fittings
- Periodic lubrication of moving parts
- Monitoring hammer wear and impact components
- Keeping hydraulic oil clean and at correct levels
Proper operator training is also critical to maintaining installation accuracy and equipment safety.
Click Here to Get A Free Quote
solar pile driver for sale in YG Machinery
A solar pile driver is a critical construction machine for photovoltaic projects, providing efficient, accurate, and scalable pile installation for solar mounting systems. By understanding its applications, working principles, configuration options, and selection criteria, project owners and contractors can choose the most suitable solution for their solar farm construction needs.
This equipment plays a foundational role in modern renewable energy infrastructure, supporting the rapid expansion of solar power projects worldwide.
