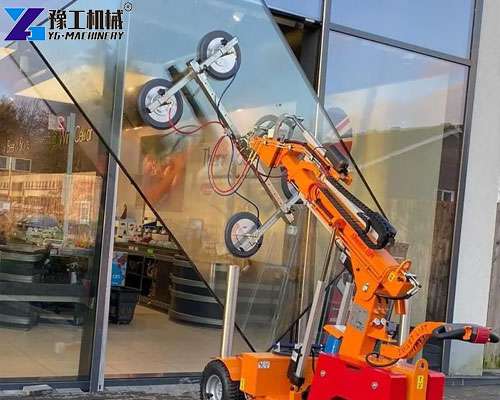

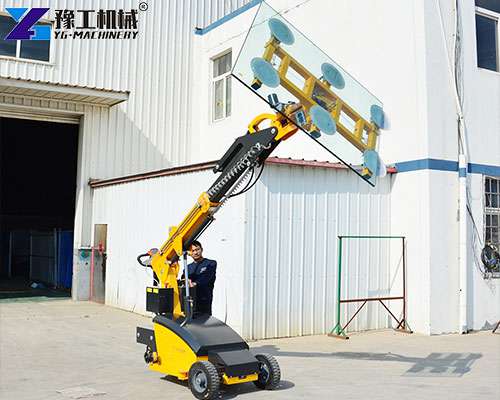

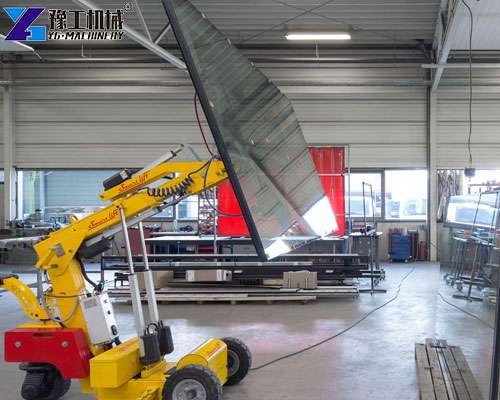

A glass robot is also referred to as: Glass lifting robot, Glass handling robot. It integrates vacuum suction technology, hydraulic lifting, and robotic maneuvering, enabling precise and safe glass handling. This equipment is suitable for construction companies, curtain wall installers, glass factories, and any project requiring safe and efficient movement of glass sheets. It enhances efficiency, reduces labor costs, and minimizes the risk of damage during glass handling.
Installing large glass panels manually is risky and inefficient. Contractors often face these problems:
- heavy glass panels difficult to handle
- high risk of glass breakage or worker injury
- slow installation on curtain wall projects
- limited space on construction sites
A glass robot solves these issues by using vacuum suction and electric lifting systems to move and install glass panels safely and precisely. It allows one operator to position large glass panels quickly and accurately.
Click Here to Get A Free Quote
Glass Robot Parameters
| Model Type | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 | |
| Load Capacity | 300kg(retract)150kg(extend) | 400kg(retract)200kg(extend) | 500kg(retract)250kg(extend) | 600kg(retract)300kg(extend) | 800kg(retract)400kg(extend) | |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm | |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs | |
| Rubber Suction Cap | 300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm | |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Loading Qty | 1x20GP/40GP: 6SETS/12SETS | |||||
| Movement | Automatic(4 kinds) | 1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally. | ||||
| Manual (2kinds) | 1. The suction cup holder can be manually rotated 90 degrees (electrically powered optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional). | |||||
| Usages | Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc. | |||||
Click Here to Get A Free Quote
Key Advantages of glass lifting robot
1.Strong Lifting Capacity
YG glass robots can lift 300–800 kg glass panels, suitable for most curtain wall and window installation projects.
This allows contractors to handle large glass panels without cranes or multiple workers.
2.Precision Glass Positioning
The suction frame can rotate and tilt to adjust the glass angle during installation.
Typical functions include:
- 180° glass tilting
- 360° rotation
- horizontal micro-adjustment
These functions help installers align glass panels accurately with building frames.
3.High Safety Vacuum System
The vacuum suction cups hold the glass firmly during lifting and installation.
Safety systems typically include:
- vacuum pressure monitoring
- alarm when suction drops
- emergency stop protection
These features reduce the risk of glass falling during installation.
4.Compact Design for Construction Sites
Glass robots are designed for tight construction environments.
Advantages include:
- narrow chassis design
- electric movement wheels
- easy transport between job sites
This makes them ideal for indoor glass installation and renovation projects.
Click Here to Get A Free Quote
Typical Applications of glazing robot
Glass robots are widely used in:
- Curtain Wall Installation: Handling large glass panels for high-rise building facades.
- Window and Door Installation: Positioning glass panels in residential and commercial buildings.
- Interior Glass Walls: Installing glass partitions in offices, malls, and hotels.
- Solar Panel Handling: Moving fragile solar panels during installation.
Glass robots are commonly used where large panels need precise installation with minimal manpower.
What Affects Glass Robot Price?
Factors influencing glass lifting robot price:
- Lifting capacity and maximum glass size;
- Mobility type (wheeled vs tracked);
- Power source (battery vs electric);
- Number and size of vacuum suction cups;
- Build quality and safety features;
- Brand and after-sales support.
Higher capacity or more feature-rich models generally cost more but provide greater efficiency and flexibility.
Click Here to Get A Free Quote
How to Choose the Right Glass Robot?
Consider the following:
- Glass size and weight: Choose a model that supports the heaviest and largest panels used.
- Installation environment: Wheeled models for smooth indoor floors, tracked models for outdoor uneven terrain.
- Project scale: Single-site projects may need smaller, more portable robots; large-scale construction may require multiple high-capacity units.
- Power supply: Battery-powered for mobility; electric for continuous indoor operation.
- Supplier reliability: Work with trusted manufacturers offering glass lifting robot for sale, maintenance, and spare parts.
Click Here to Get A Free Quote
FAQ about glass robot
1. What is the typical price range?
Prices vary based on lifting capacity, panel size, and features. Standard models are cost-effective for small projects, while high-capacity or mobile robots are higher priced.
2.What is the difference between glass robot types?
Differences include lifting capacity, mobility (wheeled vs tracked), and control systems (manual vs remote). Choose based on project requirements.
3.What glass types can it handle?
Most machines handle standard float glass, tempered glass, laminated glass, and other flat panels. Check specifications for size and weight limits.
4.How often should the machine be maintained?
Routine checks of suction cups, hydraulic system, battery, and control interface ensure consistent performance and safety.
5.Where can I purchase the machine?
Reliable suppliers like YG Machinery provide global support, warranty, and technical assistance.

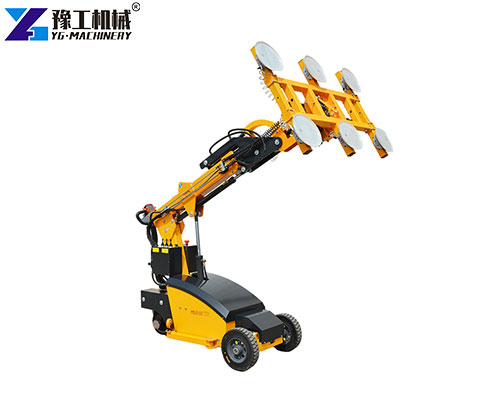

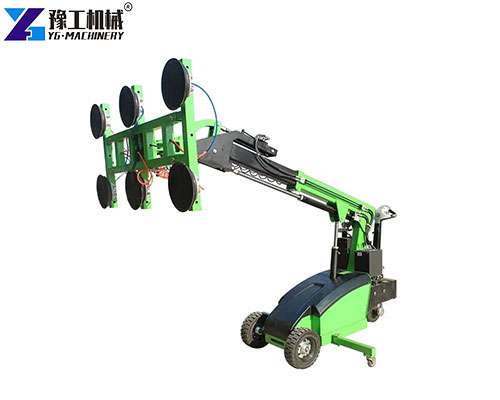

glass lifting robot for sale in YG Machinery
A glass robot provides safe, efficient, and precise glass lifting and handling in construction, manufacturing, and industrial environments. Variants adapt to different project requirements. YG Machinery offers high-quality machines, ensuring reliable performance, mobility, and adjustable lifting capacity for diverse applications.
