An excavator concrete vibrator is a hydraulic concrete compaction attachment designed to use an excavator’s hydraulic system to consolidate freshly poured concrete. By transmitting high-frequency vibration through a vibrating rod, it helps release trapped air, improve concrete density, and reduce defects such as voids and honeycombing.
Unlike handheld concrete vibrators, an excavator-mounted concrete vibrator allows the operator to position the vibrating rod from the excavator, making it particularly useful for deep foundations, large-volume concrete pours, bridge construction, retaining structures, tunnels, and other projects where manual vibration is difficult or labor-intensive.
YG Machinery supplies excavator concrete vibrators in different configurations for excavators from approximately 12 to 40 tons, with vibrating rod diameter and length customizable according to project requirements.
Need a concrete vibrator for your excavator? Contact YG for configuration and factory pricing.

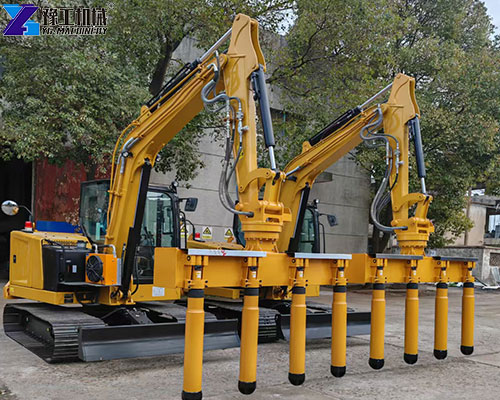

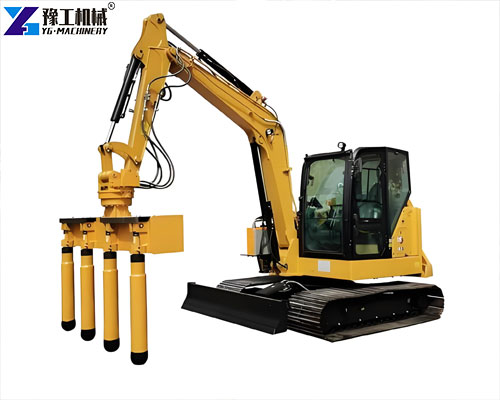

What Is an Excavator Concrete Vibrator?
An excavator concrete vibrator is a hydraulic concrete vibrator attachment mounted on an excavator to compact freshly placed concrete.
Its main working components typically include:
- Hydraulic drive unit
- Vibrating rod
- Connecting arm or extension rod
- Hydraulic hoses and fittings
- Excavator mounting or quick-coupler connection
During operation, the excavator supplies hydraulic flow and pressure to the vibrator. The hydraulic drive converts this power into high-frequency mechanical vibration, which is transmitted through the vibrating rod into the fresh concrete.
The vibration helps air bubbles move toward the surface and allows concrete to flow more effectively around reinforcement and into corners. This produces a more uniform and consolidated concrete structure.

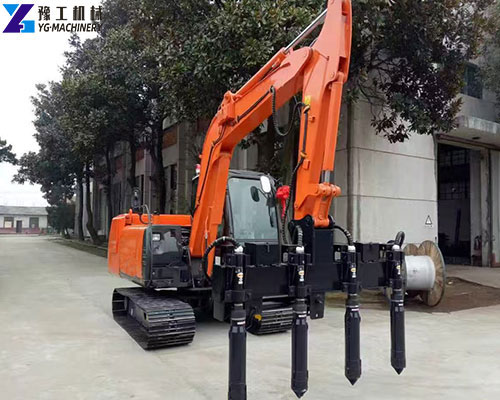

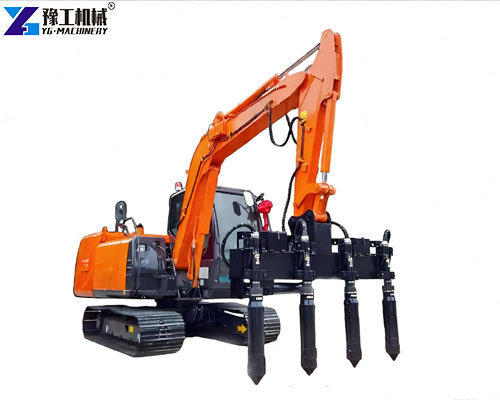

How Does a Hydraulic Excavator Concrete Vibrator Work?
The operating principle is relatively simple.
Excavator hydraulic system → hydraulic drive → high-frequency vibration → vibrating rod → concrete compaction
When the excavator sends hydraulic oil through the auxiliary hydraulic circuit, the vibrator drive generates high-frequency vibration.
The operator then inserts the vibrating rod into freshly poured concrete at suitable intervals.
The vibration helps:
- Release trapped air from the concrete.
- Improve contact between concrete and reinforcement.
- Reduce internal voids and honeycombing.
- Improve concrete consolidation.
- Produce a more uniform finished structure.
The vibrator should be used while the concrete remains workable. Proper insertion depth, spacing, vibration duration, and operating technique should be determined according to the concrete mix, reinforcement density, and project specifications. For projects requiring more automated concrete compaction, an intelligent concrete vibrating robot can provide an alternative solution, particularly where automated positioning and vibration control are preferred.
This is important because more vibration does not always mean better concrete. Excessive vibration can contribute to segregation in some concrete mixes.
YG Excavator Concrete Vibrator Specifications
YG offers different configurations according to excavator size and concrete application.
| Recommended excavator | 12–20 t | 20–40 t |
| Hydraulic flow | 80–150 L/min | 150–250 L/min |
| Hydraulic pressure | 18–25 MPa | 25–30 MPa |
| Vibration frequency | 10,000–12,000 VPM | 12,000–15,000 VPM |
| Centrifugal force | 15–25 kN | 25–40 kN |
| Standard rod diameter | 100 mm | 150 mm |
| Standard rod length | 4 m | 6 m |
| Maximum customizable length | Up to 6 m | Up to 12 m |
| Main material | High-strength wear-resistant steel | High-strength wear-resistant steel |
| Control | Excavator hydraulic control | Excavator hydraulic control |
Note: Actual hydraulic requirements and attachment configuration should be confirmed against the excavator’s auxiliary hydraulic system before ordering. Rod diameter and length can be customized for specific concrete depths and working conditions.
Key Benefits of an Excavator-Mounted Concrete Vibrator
1. Use Your Existing Excavator as the Power Source: One of the main advantages of a concrete vibrator for excavator is that it can use the excavator’s hydraulic system instead of requiring a separate drive unit.
For contractors who already operate hydraulic excavators on construction sites, this can reduce the need for additional equipment and simplify transportation and setup.
2. Reach Deep Concrete More Easily: A hydraulic vibratory rod can be manufactured in different lengths to reach deeper sections of a concrete pour.
This makes the attachment useful for:
- Deep foundations
- Bridge piers
- Large footings
- Retaining structures
- Dams and hydraulic structures
- Tunnel and underground construction
3. Improve Concrete Consolidation: Air trapped inside freshly poured concrete can create internal voids and surface defects if the concrete is not properly consolidated.
High-frequency vibration helps the concrete flow around reinforcement and reduces entrapped air.
The result can be a denser and more uniform concrete structure when the vibrator is correctly selected and operated.
4. Reduce Manual Vibration Work: With an excavator-mounted system, the operator can position the vibrating rod from the excavator rather than requiring workers to manually carry the vibrator throughout the work area.
This can be particularly valuable for:
- Large concrete pours
- Deep excavation sites
- Difficult-access structures
- Projects with dense reinforcement
- Construction environments where minimizing worker exposure is important
5. Flexible Rod Length and Configuration: Different concrete structures require different working depths.
YG can customize the vibrating rod length according to the application. Shorter rods are suitable for relatively shallow concrete work, while extended configurations can be considered for deeper structures.
The correct configuration should be selected based on:
- Concrete depth
- Excavator reach
- Reinforcement arrangement
- Concrete slump
- Aggregate size
- Required vibration coverage
6. One Excavator, Multiple Attachments: The excavator concrete vibrator can become part of a broader excavator attachment system.
Depending on the excavator’s hydraulic configuration, contractors can use the same excavator for different tasks by changing attachments, such as:
- Concrete vibrator
- Hydraulic breaker
- Excavator pile driver
- Hydraulic shear
- Grapple
- Other hydraulic attachments
With a suitable excavator quick coupler, attachment changeover can be simplified and equipment utilization improved.
Where Is an Excavator Concrete Vibrator Used?

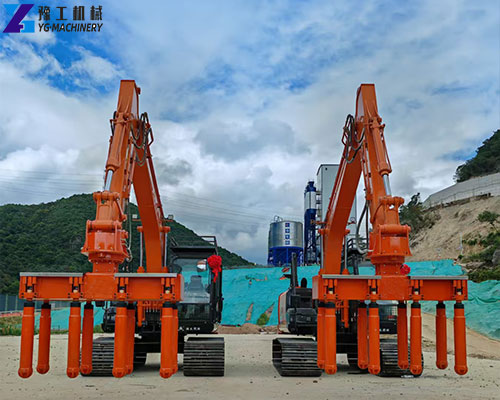

1.Deep Foundation Projects: Suitable for deep foundations, pile caps, large footings, and other structural foundation works.

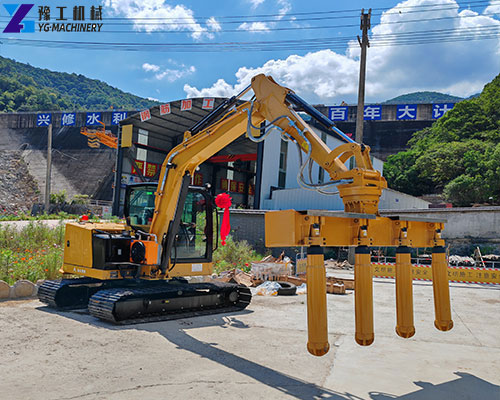

2.Bridge and Viaduct Construction: Bridge piers, abutments, pile caps, foundations, and other structural elements often involve large concrete volumes and dense reinforcement.
An excavator-mounted concrete vibrator can help position the vibrating rod from outside the immediate pouring area.
3.Dam and Water Conservancy Projects: Large hydraulic structures can involve deep and high-volume concrete placement. Long-reach vibrating configurations can be considered when conventional handheld equipment cannot efficiently reach the required depth.
4.Tunnel and Underground Construction: Concrete lining and underground structures can involve restricted working areas and difficult access.
A suitable excavator concrete vibrator can help reduce the amount of manual work required for concrete consolidation where excavator access is available.
5.Retaining Walls and Slope Protection: Concrete retaining walls and slope protection structures often require vibration along extended sections.
The excavator provides a mobile working platform while the vibrator attachment performs the consolidation work.
6.Large Footings and Structural Foundations: For commercial, industrial, and infrastructure construction, the attachment can be used for large footings, foundation beams, columns, and other cast-in-place structures.
Brazil Hydropower Dam Project – 10 m Custom Vibrating Rod
- Client Background: A large engineering contractor in Brazil was constructing a hydropower dam in the Amazon region, with a 10 m-thick concrete foundation requiring deep concrete compaction.
- Problem Solved: Standard vibration equipment was inefficient for the deep foundation. The project required a vibrator capable of reaching 10 m in depth while achieving high concrete density.
- Product Used: YG supplied a customized 10 m excavator concrete vibrator for a 30-ton excavator.
- Results: The 10 m vibrating rod reached the required concrete depth and achieved a reported concrete density of over 99%, helping the contractor complete the deep compaction work efficiently. According to the project feedback, the solution improved construction progress by about 30% compared with the previous method.
- Customer Feedback: The contractor reported that the 10 m hydraulic vibrator reduced the need for conventional layer-by-layer concrete vibration and provided a practical solution for the deep foundation application.
How to Choose the Right Excavator Concrete Vibrator?
Choosing a concrete vibrator should not be based only on excavator tonnage. The concrete application and hydraulic system also need to be considered.
1. Check Excavator Tonnage: The attachment must be compatible with the excavator’s operating weight and hydraulic capacity.
For example:
- 12–20 ton excavators: suitable for medium-duty configurations such as YG-V15
- 20–40 ton excavators: suitable for heavier configurations such as YG-V30
The actual match should be confirmed using the excavator’s hydraulic specifications.
2. Check Hydraulic Flow and Pressure: Hydraulic flow and pressure directly affect vibrator performance.
Before ordering, provide:
- Excavator model
- Hydraulic flow
- Hydraulic pressure
- Auxiliary hydraulic line specifications
- Hydraulic connection type
This allows the vibrator configuration to be matched to the excavator.
3. Select the Correct Rod Length: Rod length should correspond to the required concrete depth and the excavator’s working range.
A longer rod is not automatically better. Excessive length can increase handling difficulty and attachment weight.
For this reason, rod length should be selected based on the actual structure rather than simply choosing the maximum available length.
4. Consider Reinforcement Density: Concrete containing dense reinforcement requires effective vibration around steel bars without causing excessive interference.
The rod diameter and insertion position should therefore be considered together with the reinforcement layout.
5. Consider Concrete Mix and Aggregate Size: Concrete slump, aggregate size, reinforcement density, and structural geometry all affect vibration requirements.
A professional supplier should therefore evaluate the concrete application rather than recommending a vibrator solely according to excavator tonnage.
Excavator Concrete Vibrator vs. Other Concrete Vibration Methods
| Handheld concrete vibrator | Simple and widely available | Labor-intensive for large or deep pours |
| Electric concrete vibrator | Suitable for conventional construction | Requires electrical power and manual handling |
| Hydraulic concrete vibrator | Strong hydraulic drive | May require a separate hydraulic power source depending on setup |
| Excavator concrete vibrator | Uses excavator hydraulics and boom reach | Requires a suitable excavator and auxiliary hydraulic circuit |
| External form vibrator | Useful for specific formwork applications | Limited by formwork and structure configuration |
The excavator-mounted concrete vibrator is most attractive when the contractor already has a suitable excavator and needs greater reach, mobility, or reduced manual handling.
Excavator Concrete Vibrator Maintenance
Routine maintenance is relatively straightforward, but the hydraulic and vibrating components should be inspected regularly.
Recommended checks include:
- Inspect hydraulic hoses and fittings for leakage.
- Check hydraulic oil cleanliness and condition.
- Inspect the vibrating rod for abnormal wear or damage.
- Check mounting pins and connection points.
- Inspect the quick coupler and attachment connection before operation.
- Follow the manufacturer’s lubrication and maintenance requirements.
- Stop operation if abnormal vibration, noise, or hydraulic leakage occurs.
Regular inspection helps maintain stable vibration performance and reduces unexpected downtime.
Why Choose YG Excavator Concrete Vibrator?
YG Machinery designs hydraulic attachments for construction and infrastructure applications.
Our excavator concrete vibrator solutions focus on practical project requirements rather than a one-size-fits-all configuration.
1.Customized Working Length: Vibrating rod length can be customized according to concrete depth and application requirements.
2.Excavator Hydraulic Compatibility: Configurations are available for different excavator sizes and hydraulic capacities.
3.Heavy-Duty Construction: The vibrator components use high-strength materials designed for demanding construction environments.
4.Flexible Attachment Integration: The concrete vibrator can be configured as part of an excavator attachment system, allowing contractors to use the same excavator platform for multiple operations.
5.Factory-Direct Support: YG can assist customers with excavator matching, hydraulic parameter confirmation, attachment configuration, and project-specific requirements before production.
FAQ about excavator concrete vibrator
1.Can an excavator concrete vibrator work with any excavator?
Not necessarily. The excavator must have suitable auxiliary hydraulic flow and pressure, sufficient lifting capacity, and an appropriate mounting or quick-coupler system.
Send us your excavator model and hydraulic specifications so we can recommend a suitable configuration.
2.What excavator size is required?
YG currently offers configurations for approximately 12–40 ton excavators, depending on the vibrator model.
The hydraulic flow and pressure should also be checked before selecting the attachment.
3.Can the vibrating rod be customized?
Yes. Rod diameter and length can be customized according to the required concrete depth, structure, reinforcement arrangement, and excavator configuration.
4.Can it replace a hydraulic breaker or vibratory pile driver?
No. These attachments have different functions.
An excavator concrete vibrator is designed for concrete consolidation. A hydraulic breaker is designed for breaking rock or concrete, while an excavator pile driver is designed for pile installation or extraction.
They may, however, share the same excavator platform when the hydraulic system and attachment interface are compatible.
5.Does it require a separate power source?
The excavator-mounted configuration uses the excavator’s hydraulic system as its power source. No separate electric motor is required for the attachment itself.
6.Is a quick coupler required?
A quick coupler is not necessarily required, but it can make attachment installation and switching more convenient. The mounting configuration can be selected according to the excavator and customer’s working requirements.
7.What information do I need to provide to choose an excavator concrete vibrator?
To recommend a suitable configuration, provide your excavator model, operating weight, hydraulic flow, hydraulic pressure, required concrete depth, and application. Photos or drawings of the working area can also help us determine the appropriate rod length and attachment configuration.
Excavator Concrete Vibrator for Sale
For contractors working with deep foundations, bridge construction, large concrete structures, retaining walls, tunnels, and other infrastructure projects, an excavator concrete vibrator can turn an existing excavator into a mobile concrete compaction machine.
Compared with relying entirely on handheld vibration equipment, the hydraulic attachment provides greater reach and allows the excavator operator to position the vibrating rod from the machine.
The key is choosing the correct configuration. Excavator tonnage, hydraulic flow, hydraulic pressure, rod diameter, rod length, concrete depth, reinforcement density, and aggregate size should all be considered before purchase.
YG Machinery can provide a suitable excavator-mounted concrete vibrator based on your excavator specifications and project requirements.
Send us your excavator model, hydraulic flow/pressure, required vibration depth, and application. Get a factory-direct configuration and quotation from YG Machinery.
