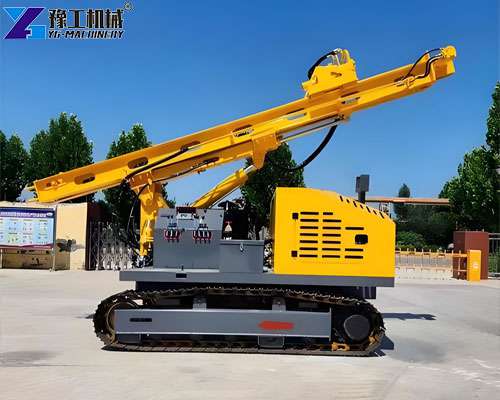

A solar ramming pile driver is a heavy-duty photovoltaic foundation construction machine designed to install solar support piles quickly and efficiently using high-impact hydraulic or drop-hammer force. It is widely used in modern solar farm projects where construction speed, installation accuracy, and adaptability to complex soil conditions directly affect project delivery time and overall cost.
Compared with conventional drilling or light piling equipment, a solar ramming pile driver provides stronger penetration force and higher efficiency in compacted or mixed geological formations. It is widely recognized as an advanced type of solar piling machine for large-scale renewable energy infrastructure.
What Is a Solar Ramming Pile Driver?
A solar ramming pile driver is a specialized solar foundation machine used to drive steel piles directly into the ground through controlled hydraulic impact energy.
It is mainly used for installing photovoltaic foundation structures such as:
- H-beam steel piles
- C-shaped and U-shaped steel profiles
- Ground-mounted solar support posts
- Helical and spiral piles (with compatible systems)
- PV mounting foundation structures
By using strong vertical ramming force, the machine ensures fast pile penetration and stable foundation alignment for solar panel systems.
Why Choose a Solar Ramming Pile Driver?
- Engineering Principle
A solar ramming pile driver is specifically engineered for photovoltaic foundation construction in complex soil conditions. It uses high-impact hydraulic energy to directly drive piles into the ground, which allows faster penetration compared to rotary or auger-based systems that rely on soil removal.
- Core Technical Advantages
Its performance advantage comes from its ability to combine strong penetration force with stable mast guidance, making it highly effective in both hard and mixed soil layers. In many cases, it also reduces the need for pre-drilling, which improves overall construction efficiency.
- Practical Benefits for EPC Projects
This results in several key benefits for solar farm contractors, including faster installation speed, improved pile accuracy, reduced equipment dependency, and more stable operation in continuous large-scale PV projects.
Solar Ramming Pile Driver Parameters
| Crawler Solar Pile Ramming Machine – Hydraulic Hammer Type (requires compressor for rock drilling) | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Track shoe width | 400mm |
| Power Head | Hydraulic power | Engine | Yuchai four cylinder (85 kW) |
| Overall Quality | 6.5 T | Maximum drilling depth | 6m (can connect drill rods) |
| Maximum Drilling Diameter | 350 mm | Hydraulic hammer flow | 50–110 L/min |
| Impact Frequency | 350–800 bpm | Hydraulic system pressure | 25–30 MPa |
| Oil Pump | 40/40/32 | Travel speed | 5 km/h |
| Climbing Angle | 30° | Strong wind heat dissipation | Large radiator |
Key Advantages of Solar Ramming Pile Driver
1.High-Efficiency Pile Installation
A solar ramming pile driver is designed for fast and continuous operation in large-scale photovoltaic projects. The hydraulic hammer system delivers strong impact energy, allowing rapid pile driving and significantly improving daily installation capacity compared with standard solar pile driver systems.
2.Strong Performance in Complex Soil Conditions

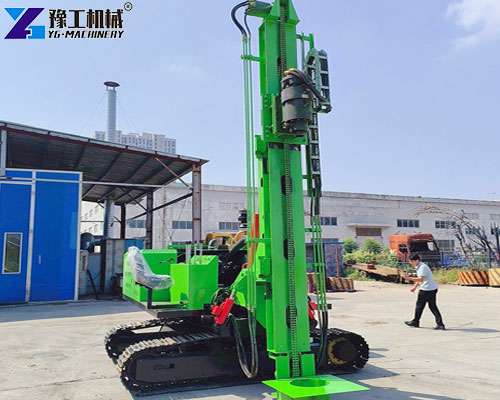

A major advantage of the solar ramming pile driver is its ability to handle diverse geological environments. It can operate efficiently in:
- Compacted clay soil
- Sandy soil mixed with gravel
- Multi-layer hard soil formations
- Semi-rock ground conditions (with pre-treatment when required)
This makes it highly suitable for global solar farm projects where soil conditions vary across construction sites.
3.High Structural Stability and Vertical Accuracy
The equipment is equipped with a reinforced mast guiding system that ensures stable vertical alignment during pile driving. This improves installation accuracy and ensures long-term stability of photovoltaic mounting structures.
4.Reduced Construction Cost and Time
By eliminating or reducing the need for drilling in many soil conditions, the solar ramming pile driver helps reduce:
- Pre-drilling operations
- Labor requirements
- Installation time
- Equipment rental and operating cycles
This improves overall project efficiency and reduces EPC construction costs.
5.Powerful Hydraulic Impact System
The hydraulic ramming system provides consistent and controllable impact force, ensuring stable performance even during continuous operation in large solar farm projects.
Application Scenarios of Solar Ramming Pile Driver
1.Utility-Scale Solar Farms
In large photovoltaic power stations, thousands of piles must be installed with consistent depth and vertical accuracy. A solar ramming pile driver ensures fast and stable installation, making it ideal for high-volume solar farm construction.
2.Desert and Semi-Arid Solar Projects

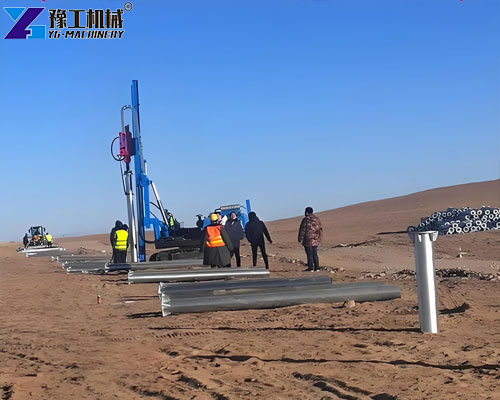

In desert environments with loose sand and mixed gravel layers, the ramming system provides strong penetration performance and stable operation under harsh conditions.
3.Agricultural Photovoltaic Systems
In agricultural PV projects, minimal soil disturbance is required. The solar ramming pile driver supports efficient installation while maintaining land usability for farming activities.
4.Mountainous and Uneven Terrain Projects
Crawler-mounted configurations allow the machine to operate on slopes, uneven ground, and remote areas where traditional equipment may face mobility limitations.
How a Solar Ramming Pile Driver Works?
The working process is based on controlled hydraulic impact energy:
- Position the pile at the installation point
- Adjust mast alignment for vertical accuracy
- Activate hydraulic ramming system
- Apply repeated impact force to drive pile
- Reach required depth
- Move to next installation point
This continuous impact mechanism ensures fast and efficient photovoltaic foundation installation.
Solar Ramming Pile Driver vs Other Solar Piling Machines
| Solar ramming pile driver | Hydraulic impact (ramming) | Hard and mixed soil | Very high |

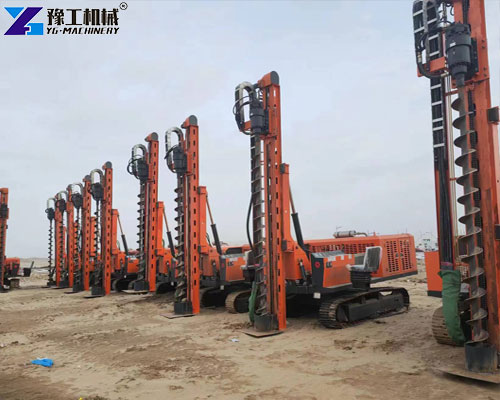

| Solar auger drilling rig | Rotary auger drilling + soil removal | Soft to medium soil | Medium |
| Rotary drilling machine | Drilling + pile insertion | Soft soil | Medium |
| Vibratory pile driver | High-frequency vibration | Sandy soil | High |
| Drop hammer piling machine | Vertical hammer impact | Hard ground | High |
Among these options, the solar ramming pile driver is particularly suitable for complex and mixed soil conditions in solar farm projects. To better understand which equipment is most suitable for your project, learn how to choose the right solar pile driver based on different soil and construction requirements.tions, the solar ramming pile driver is particularly suitable for complex and mixed soil conditions in solar farm projects.
Brazil Case Study: Solar Farm Project in Minas Gerais
Project Background: A large photovoltaic project in Minas Gerais, Brazil required foundation installation across a wide area with complex geological conditions, including red clay soil, gravel interlayers, and weathered rock zones.
This type of terrain is very common in Brazil’s inland solar development regions, where soil conditions change frequently within short distances.
Construction Challenges: Before using a solar ramming pile driver, the EPC contractor faced several issues:
- Slow pile installation speed in mixed soil conditions
- Frequent pile vertical deviation
- High cost of drilling in hard soil zones
- Equipment instability on uneven terrain
YG Machinery Solution: YG Machinery recommended a crawler-type solar ramming pile driver equipped with:
- High-energy hydraulic hammer system
- Reinforced mast structure for vertical control
- Wide crawler chassis for stability on slopes
- Adjustable impact force for mixed soil layers
Project Results: After equipment deployment, the project achieved:
- Faster and more stable pile installation
- Reduced need for pre-drilling in most areas
- Improved vertical accuracy of foundation piles
- Lower overall construction cost per installed MW
- Better adaptability to Brazil’s mixed geological conditions
FAQ About Solar Ramming Pile Driver
1.What soil conditions is it suitable for?
It performs well in clay, sand, gravel, and mixed soil conditions. For very hard rock, pre-drilling may be required.
2.What is the difference between ramming and drop hammer piling?
A solar ramming pile driver is optimized for photovoltaic foundation work with controlled hydraulic impact, while a drop hammer piling machine is a more general construction tool.
3.Can it replace other solar foundation machines?
In many projects, yes. It can replace rotary or vibratory systems depending on soil conditions and project requirements.
4.Is it suitable for Brazil solar projects?
Yes. It is highly suitable for Brazil due to its mixed soil layers, clay zones, and uneven terrain conditions.
5.What pile types can it install?
It supports H-beams, C-beams, U-beams, and other photovoltaic support piles.
solar ramming pile driver in YG Machinery
A solar ramming pile driver is a high-performance photovoltaic foundation solution designed for fast, stable, and efficient solar farm construction. With strong hydraulic impact force, excellent soil adaptability, and high installation efficiency, it is widely used in global PV projects, especially in regions with complex geological conditions such as Brazil.
As an advanced type of solar pile driver, it offers a more powerful and efficient alternative to traditional solar piling machine and drop hammer piling machine solutions, helping EPC contractors reduce costs and improve project delivery speed.
