In March 2025, an Argentine customer purchased four YG solar piling machines for a large-scale photovoltaic power station project in Argentina. The equipment was mainly used for solar panel foundation installation in semi-hard soil and gravel formations commonly found in local solar farm construction areas.
After comparing multiple foundation construction solutions, the customer finally selected YG hydraulic photovoltaic pile driver equipment because of its strong adaptability, high piling efficiency, and lower operating cost in complex terrain conditions.
Solar Piling Machine Parameters
| Crawler Solar Pile Ramming Machine – Hydraulic Hammer Type (requires compressor for rock drilling) | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Track shoe width | 400mm |
| Power Head | Hydraulic power | Engine | Yuchai four cylinder (85 kW) |
| Overall Quality | 6.5 T | Maximum drilling depth | 6m (can connect drill rods) |
| Maximum Drilling Diameter | 350 mm | Hydraulic hammer flow | 50–110 L/min |
| Impact Frequency | 350–800 bpm | Hydraulic system pressure | 25–30 MPa |
| Oil Pump | 40/40/32 | Travel speed | 5 km/h |
| Climbing Angle | 30° | Strong wind heat dissipation | Large radiator |
| Auger Drilling Solar Pile Driver-Rotary Drilling Type | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Rock Hardness (The hardness of rocks) | 6–20 F |
| Track Shoe Width | 400 mm | ||
| Engine | Yuchai four cylinder | Travel/Walking Speed | 5 km/h |
| Maximum Drilling Depth | 6 m (can install longer drill pipes) | Drill Pipe Speed | 180r/min |
| Maximum Drilling Diameter | 400mm | Sliding Frame Pitch Angle | 120° |
| Reducer Torque | 13,000N.m | Climbing Angle | 30° |
| Oil Pump | 40 / 40 / 32 | Drilling boom swing angle | Left & Right 150° (±75°) |
| Overall Weight | 6.5 T | Slide swing angle | Left & Right 40° |
Project Background in Argentina
Argentina has become one of the fastest-growing renewable energy markets in South America in recent years. Large solar energy projects are expanding rapidly, especially in regions with strong sunlight resources and vast open land.
However, local geological conditions create several construction challenges for solar farm contractors:
- Dense calcareous soil
- Gravel mixed formations
- Partially compacted clay layers
- Hard surface crust in dry areas
- Uneven ground conditions in remote solar sites
Traditional piling equipment often suffers from:
- Slow piling speed
- Frequent drill rod wear
- Difficult positioning accuracy
- High fuel consumption
- Poor mobility in remote construction sites
Because of these issues, the customer needed a high-efficiency solar pile driver machine capable of handling both impact piling and pre-drilling operations.
Why the Customer Selected YG Solar Piling Machines?
After detailed technical discussions, YG recommended a multifunctional solar piling machine combining:
- Hydraulic impact piling
- Rotary auger drilling
- Pre-drilling for hard soil
- Fast mobility crawler chassis
- Hydraulic leveling system
The customer finally purchased four units equipped with:
- Hydraulic hammer system
- Auger drilling attachment
- High-torque rotary head
- Adjustable crawler platform
This configuration allowed the machine to work efficiently in mixed geological conditions across the solar power project.

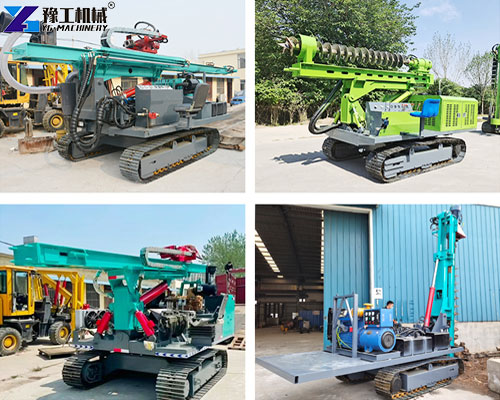

Combining Solar Pile Driver Types with Argentina Soil Conditions
Different solar pile driver types are suitable for different ground conditions. For this Argentina project, the customer needed equipment capable of both direct pile driving and pre-drilling.

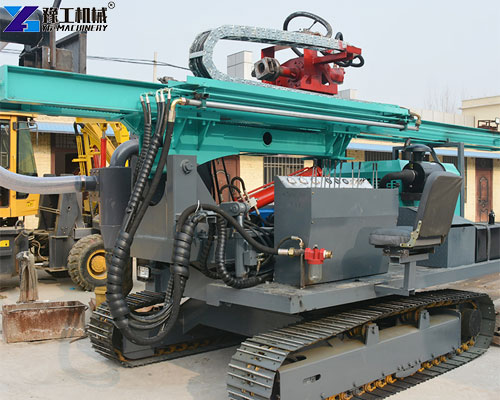

1. Solar Ramming Pile Driver for Semi-Hard Soil
In compacted clay and dense soil areas, the hydraulic solar ramming pile driver achieved fast piling speed with stable vertical accuracy.
Advantages included:
- Fast impact piling
- Low operating cost
- High construction efficiency
- Suitable for large-scale solar farms
Compared with ordinary guardrail pile driver equipment, the photovoltaic pile driver used in this project had stronger hydraulic output and better stability for long solar piles.
2. Solar Auger Drilling Rig for Gravel Layers

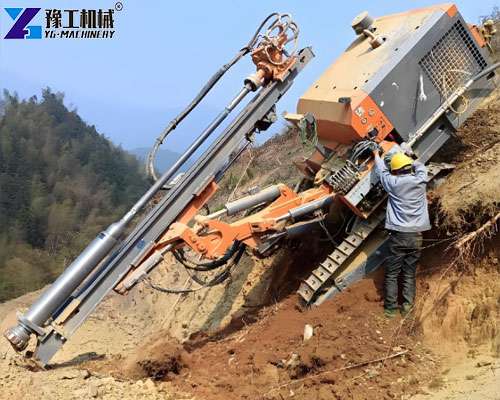

Some construction zones contained gravel and partially rocky layers. In these areas, the customer used the solar auger drilling rig configuration for pre-drilling solar piles before pile installation.
The auger drilling rig for solar foundation construction provided several benefits:
- Reduced pile deformation
- Lower hammer wear
- Improved pile positioning
- Easier installation in hard ground
The solar auger drilling machine significantly improved overall foundation installation efficiency.
3. Solar Screw Pile Driver for Flexible Foundation Solutions
Part of the project required screw pile installation in softer soil zones. The helical pile driver attachment allowed the customer to install screw piles quickly without excessive vibration.
This solution was especially useful in areas requiring:
- Reduced soil disturbance
- Faster installation
- Easy future removal
- Flexible foundation adjustment
Because of this versatility, the customer considered the YG equipment a highly cost-effective solar pile driver for sale solution.
Key Advantages of the YG Solar Pile Driver Machine
High Construction Efficiency

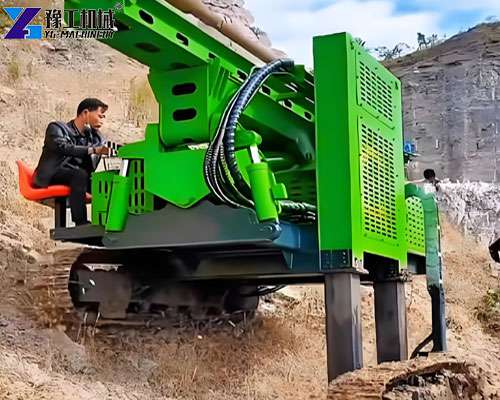

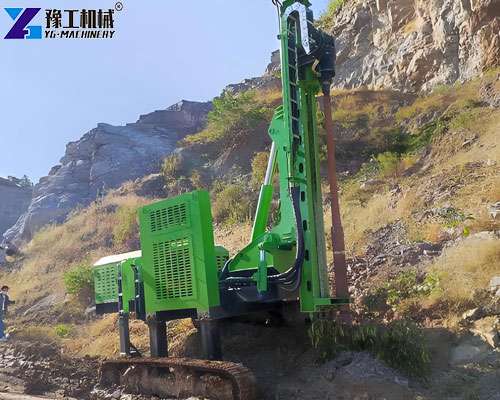

The crawler-mounted solar piling rig allowed rapid movement between pile positions, greatly reducing idle time.
The hydraulic system provided:
- Fast hammer response
- Stable drilling torque
- Lower fuel consumption
- Smooth operation on uneven terrain
Multifunctional Design
Unlike standard solar farm pile driving machine equipment, the YG machine combined:
- Impact piling
- Auger drilling
- Screw piling
- Pre-drilling functions
This reduced the need for multiple machines on-site.
Strong Adaptability for Solar Farm Construction
The customer specifically mentioned that the solar mounting pile driver performed well in:
- Gravel soil
- Hard clay
- Dry compacted ground
- Slight rocky layers
The machine maintained stable performance even during long working hours under hot weather conditions.
Customer Feedback from Argentina
After several months of operation, the customer reported:
- Faster project progress
- Reduced labor costs
- Lower fuel consumption
- High pile installation accuracy
- Stable operation in complex terrain
The customer was especially satisfied with the auger drilling rig for solar applications because it solved the pre-drilling problem in hard ground areas.
According to the project manager:
“The multifunctional YG solar pile driver machine helped us complete foundation installation much faster than expected. The combination of impact piling and auger drilling was very practical for Argentina’s mixed soil conditions.”
Why More Solar Contractors Choose YG Solar Piling Machines?
As solar energy projects continue expanding across South America, more contractors are looking for reliable photovoltaic pile driver solutions capable of handling different geological environments.
YG Machinery provides:
- Solar pile driver for sale solutions
- Customized piling configurations
- Hydraulic solar pile ramming machine systems
- Auger drilling rig for solar foundation applications
- Technical support for overseas solar projects
Whether for soft soil, gravel formations, or hard ground pre-drilling, YG can recommend the most suitable solar piling machine configuration for your project.
Looking for a Reliable Solar Pile Driver for Your Solar Farm Project?
If you are planning a photovoltaic power station project and need efficient foundation installation equipment, contact YG Machinery today for professional recommendations and customized solar piling solutions.
