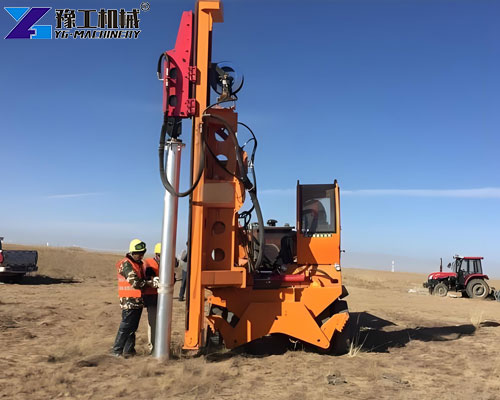

As renewable energy projects continue expanding across Africa, the demand for efficient solar pile installation equipment is increasing rapidly. Recently, YG Machinery successfully delivered a high-performance photovoltaic pile driver to a solar energy contractor in South Africa. The machine is mainly used for installing steel piles for large-scale solar mounting systems in challenging construction environments.
This project not only improved the customer’s piling efficiency, but also demonstrated the growing popularity of Chinese solar pile driving machines in African photovoltaic projects.
Click Here to Get A Free Quote

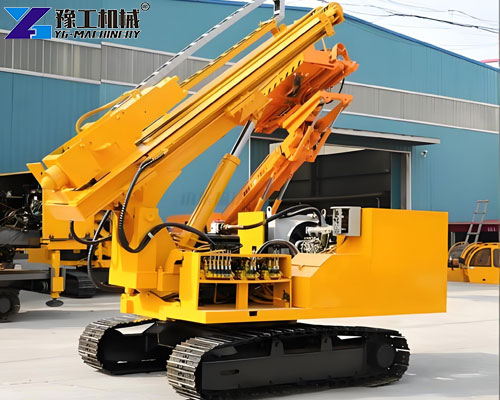

Photovoltaic Pile Driver Parameters
| Crawler Solar Pile Ramming Machine – Hydraulic Hammer Type (requires compressor for rock drilling) | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Track shoe width | 400mm |
| Power Head | Hydraulic power | Engine | Yuchai four cylinder (85 kW) |
| Overall Quality | 6.5 T | Maximum drilling depth | 6m (can connect drill rods) |
| Maximum Drilling Diameter | 350 mm | Hydraulic hammer flow | 50–110 L/min |
| Impact Frequency | 350–800 bpm | Hydraulic system pressure | 25–30 MPa |
| Oil Pump | 40/40/32 | Travel speed | 5 km/h |
| Climbing Angle | 30° | Strong wind heat dissipation | Large radiator |
| Auger Drilling Solar Pile Driver-Rotary Drilling Type | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Rock Hardness (The hardness of rocks) | 6–20 F |
| Track Shoe Width | 400 mm | ||
| Engine | Yuchai four cylinder | Travel/Walking Speed | 5 km/h |
| Maximum Drilling Depth | 6 m (can install longer drill pipes) | Drill Pipe Speed | 180r/min |
| Maximum Drilling Diameter | 400mm | Sliding Frame Pitch Angle | 120° |
| Reducer Torque | 13,000N.m | Climbing Angle | 30° |
| Oil Pump | 40 / 40 / 32 | Drilling boom swing angle | Left & Right 150° (±75°) |
| Overall Weight | 6.5 T | Slide swing angle | Left & Right 40° |
South African Customer Background
The customer is a professional EPC contractor specializing in solar farm construction and renewable energy infrastructure projects in South Africa. In recent years, the company has participated in multiple photovoltaic power station projects in regions with complex terrain and hard soil conditions.
The customer mainly needed to install:
- I-beam steel piles
- C-shaped steel piles
- Z-shaped steel piles
- Round steel pipe piles
- Screw piles
- Partial concrete piles
Due to the large construction area and strict project timeline, the customer urgently needed a reliable photovoltaic pile driver with strong adaptability and high working efficiency.
Challenges Faced by the Customer
Before cooperating with YG Machinery, the customer encountered several major construction problems.
Difficult Ground Conditions
Some construction sites in South Africa contained compacted soil layers and mixed rock formations. Traditional manual piling methods were slow and inefficient.
Uneven Terrain
The solar farm was built on sloped ground with height differences across the project area. Standard pile driving machines had difficulty maintaining stable operation.
Multiple Pile Types
The customer needed one machine capable of handling different pile materials and installation methods, including steel piles, screw piles, and concrete piles.
High Transportation and Labor Costs
The customer wanted to reduce manpower requirements and improve overall construction efficiency while maintaining accurate pile positioning.
YG Provided a Customized Photovoltaic Pile Driver Solution
After analyzing the customer’s construction environment and pile requirements, YG Machinery recommended a multifunctional photovoltaic pile driver specially designed for African solar projects.
The machine integrates pile driving, drilling, and positioning functions, making it suitable for large photovoltaic foundation construction projects.
Key Features of the YG Solar Pile Driver

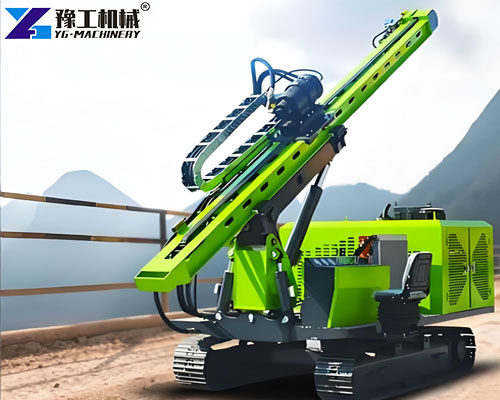

Powerful Hydraulic Hammer for Fast Pile Driving
The machine is equipped with a high-performance hydraulic hammer capable of efficiently driving steel piles into hard ground conditions.
Compared with traditional piling equipment, the hydraulic impact system provides:
- Faster piling speed
- More stable operation
- Lower labor intensity
- Higher construction efficiency
The machine can handle various pile types including I-beams, C-channel steel, Z-type piles, and round pipe piles commonly used in solar mounting systems.

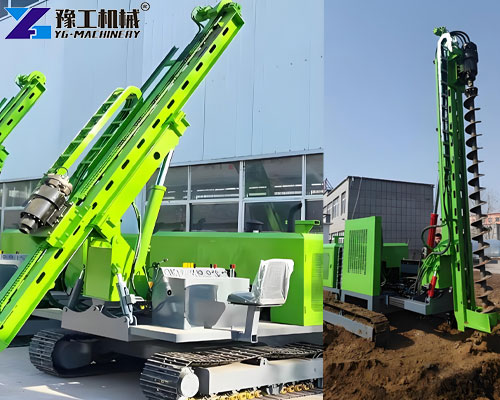

Hydraulic Auger for Pre-Drilling Operations
For rocky or compacted soil conditions, the customer also selected a hydraulic auger drilling system.
The hydraulic spiral drill bit allows operators to complete pre-drilling before pile installation, greatly improving construction adaptability in difficult geological environments.
This function is especially important in African solar projects where soil conditions often vary significantly across the site.

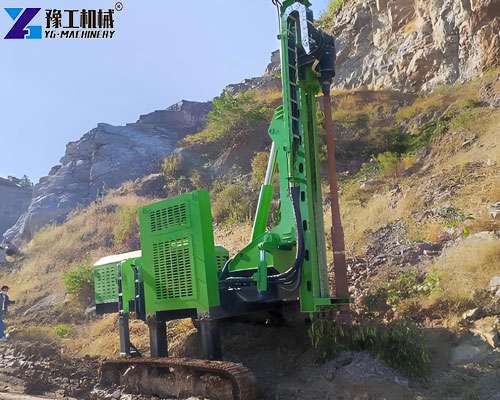

Adjustable High-Low Outriggers for Uneven Terrain
One of the customer’s biggest concerns was operating stability on uneven ground.
YG photovoltaic pile drivers are equipped with adjustable high-low outriggers that help the machine maintain balance on sloped and rugged terrain.
This feature improves:
- Construction safety
- Pile driving accuracy
- Machine stability
- Working efficiency on complex terrain
The machine can continue operating efficiently even in hilly photovoltaic project areas.
360° Rotating Chassis Improves Flexibility
To improve working flexibility and reduce repositioning time, the machine adopts a 360-degree rotating chassis design.
Operators can easily adjust the working direction without moving the entire machine frequently. This greatly reduces unnecessary travel time during large-scale solar farm construction.
For photovoltaic projects requiring continuous pile installation across long working rows, this feature significantly improves efficiency.
Forward Extension Structure Increases Working Range
The machine also includes a forward extension design that extends the working structure by 40 cm.
This design provides:
- Better drilling reach
- Improved piling angle adjustment
- Easier operation in narrow spaces
- Greater flexibility during installation
For dense solar mounting layouts, the extended structure helps operators maintain efficient continuous construction.
Suitable for Multiple Pile Types
One important reason the South African customer selected YG Machinery was the machine’s wide application range.
The photovoltaic pile driver can install:
- I-beam piles
- C steel piles
- Z steel piles
- Round steel pipe piles
- Screw piles
- Concrete piles
This multifunctional capability allows customers to use one machine for multiple solar project requirements, reducing equipment investment costs.
Learn more about how to select the suitable solar pile driver type

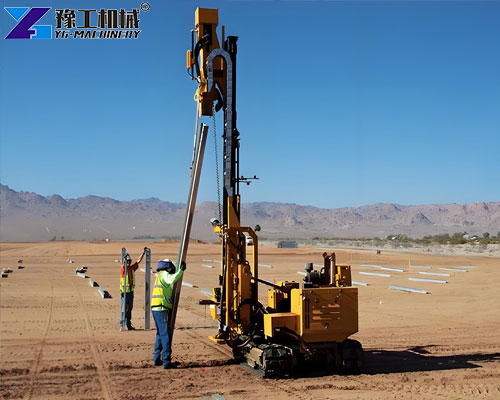

Project Results After Equipment Delivery
After the machine was delivered and put into operation, the customer reported significant improvements in construction efficiency and project progress.
Improved Construction Efficiency
Compared with the previous piling method, daily pile installation capacity increased substantially.
The hydraulic hammer and auger combination allowed the customer to complete piling operations much faster even in hard soil conditions.
Reduced Labor Costs
The multifunctional design reduced the need for multiple separate machines and additional labor workers.
Better Adaptability to African Construction Environments
The adjustable outriggers and strong crawler chassis provided stable operation under challenging site conditions.
Higher Pile Installation Accuracy
The machine maintained stable vertical pile positioning, improving the quality of the solar mounting foundation system.
Why More African Customers Choose YG Photovoltaic Pile Drivers?
As solar energy investment continues increasing in Africa, many contractors are searching for reliable and affordable solar pile driving equipment.
YG Machinery has exported photovoltaic pile drivers to many countries worldwide and continues improving equipment performance based on customer feedback from real construction sites.
Our advantages include:
- Professional photovoltaic piling solutions
- Multifunctional machine customization
- Strong hydraulic systems
- Stable crawler chassis
- Fast delivery service
- Technical support and spare parts supply
- Rich export experience for African markets
In addition to photovoltaic pile drivers, YG also produces various excavator attachments and foundation construction equipment to meet different project requirements.
Photovoltaic Pile Driver for Sale
The successful delivery of the photovoltaic pile driver to South Africa once again demonstrates the reliability and adaptability of YG solar piling equipment for African renewable energy projects.
With powerful hydraulic hammers, hydraulic auger drilling systems, adjustable outriggers, 360-degree rotating chassis, and support for multiple pile types, YG photovoltaic pile drivers provide an efficient solution for modern solar farm construction.
As more countries continue investing in renewable energy infrastructure, high-performance solar pile driving equipment will play an increasingly important role in improving project efficiency and reducing construction costs.
