A polyurethane spray machine is a high-pressure, plural-component spraying system used to apply polyurethane foam or coating materials for insulation, waterproofing, and surface protection. It precisely heats, pressurizes, and proportionally mixes two liquid components, allowing the material to react and form a seamless foam or protective layer directly on the surface.
Depending on configuration and material selection, the same equipment platform can also be used as a polyurea spray machine, making it suitable for both insulation and industrial coating applications.
Click Here to Get A Free Quote

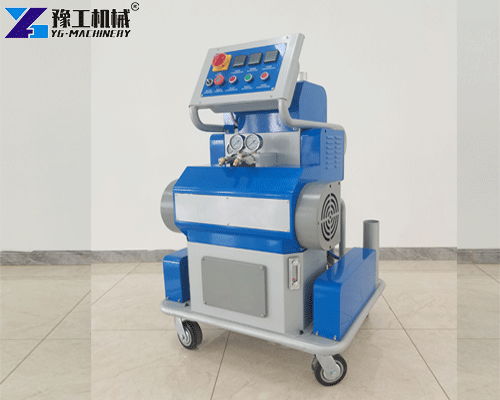

Polyurethane Spray Machine Parameters
| Project | YGMC-500 high configuration PU Machine |
| Proportion Fixed Mainframe | 1 set |
| Self-cleaning spray gun | 1 set |
| Gross weight | 300KG |
| Net weight | 250KG |
| Feed pump | 2 sets |
| Heated hose | 49.2 ft (15 m) |
| Data ratio of raw materials | 1: 1 (fixed) |
| Raw material viscosity range | 200-1000CPS (at working temperature) |
| Max Working pressure | 35MPa (350 bar) |
| Maximum Fluid Temperature | 88 ° C (190 ° F) |
| Maximum output | 24kg/min (42 lb/min) |
| Each heater power | 6000W |
| Heating hose power | 1000W / 15m |
| Total power | 15000W |
| Voltage | 230V 1-ph / 3-ph 220V/400V 3-ph |
| Machine size | 870mm* 700mm* 1150mm |

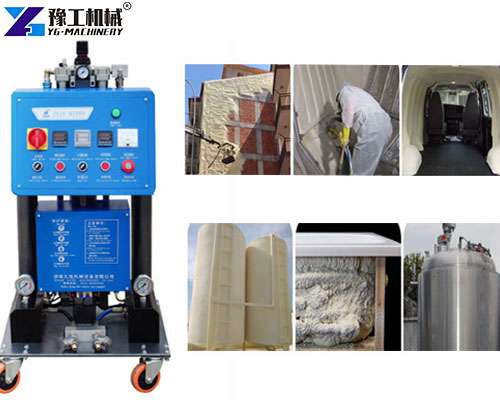

What Is a Polyurethane Spray Machine Used For?
A polyurethane spray machine is primarily used for thermal insulation and energy-saving construction, while also supporting waterproofing and surface protection when configured for polyurea materials.
Typical applications include:
- Building roof and wall insulation
- Cold room and cold storage construction
- Container houses and modular buildings
- Industrial floors and steel structures
- Storage tanks and equipment protection
These applications require seamless coverage, stable thickness, and long-term performance, which cannot be easily achieved with traditional insulation boards or manual coating methods.
Click Here to Get A Free Quote
Key Advantages of Polyurethane Spray Machines
- High-Efficiency Spraying and Consistent Quality: Precise ratio control and stable pressure ensure uniform foam density or coating thickness. This improves insulation performance and surface protection consistency.
- Seamless Insulation and Coating Layer: Spraying forms a continuous layer without joints, reducing thermal bridges, air leakage, and water penetration points.
- Reduced Labor and Construction Time: Spray application is faster than traditional insulation installation, lowering labor demand and shortening project schedules.
- Flexible Material Compatibility: One machine platform can be used with:
- Polyurethane foam for insulation
- Polyurea materials for waterproofing and anti-corrosion
This flexibility allows contractors to handle different project types with one system.
Click Here to Get A Free Quote

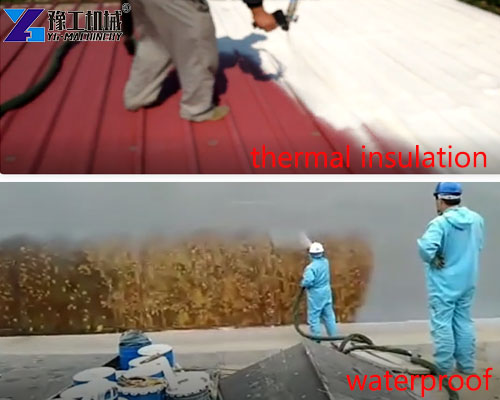

Typical Application Scenarios of PU Spray Machine

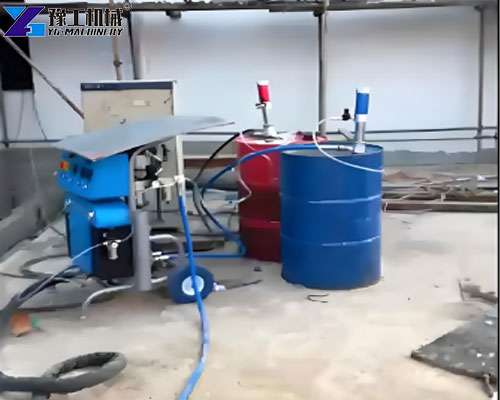

Building and Roof Insulation
- Residential and commercial buildings
- Warehouses and factory roofs
- Energy-saving renovation projects
Polyurethane foam spraying improves thermal performance while adapting to complex roof structures.
Cold Room and Cold Storage Insulation
- Cold rooms and refrigerated warehouses
- Cold storage panels and walls
In these projects, customers often search for a polyurethane foam machine for sale that can deliver stable insulation thickness and fast application.
Industrial Waterproofing and Anti-Corrosion
When configured as a polyurea spray system, the machine is also used for:
- Steel structures
- Storage tanks and pipelines
- Industrial floors and equipment surfaces
Polyurea coatings provide excellent resistance to moisture, chemicals, and abrasion.
Click Here to Get A Free Quote
How Does a Polyurethane Spray Machine Work?
A polyurethane spray machine operates using a high-pressure hot spray process.
The working principle includes:
- Separate heating of Component A and Component B
- Precise ratio control through a proportioning unit
- Pressurization to spraying pressure
- Instant mixing inside the spray gun
- Rapid reaction and curing on the substrate
Temperature stability and pressure balance are critical to achieving proper foam structure or coating performance.
Click Here to Get A Free Quote
Polyurethane Spray Machine vs Polyurea Spray Machine
Although the equipment structure is similar, the application focus is different.
| Item | Polyurethane Spray Machine | Polyurea Spray Machine |
| Main purpose | Thermal insulation & foam | Waterproofing & protective coating |
| Material state | Foam (expanded) | Solid elastomer coating |
| Curing speed | Moderate | Extremely fast |
| Typical projects | Buildings, cold storage | Infrastructure, industrial coating |
| Coating thickness | Thick insulation layers | Thin to medium layers |
This page focuses on polyurethane spray machines with optional polyurea capability, not dedicated industrial-only coating systems.
Click Here to Get A Free Quote
What Affects the Polyurethane Spray Machine Price?
The polyurethane spray machine price depends on technical configuration rather than a single factor.
Key price factors include:
- Maximum working pressure
- Heating power and temperature stability
- Output capacity
- Hose length and heating efficiency
- Spray gun type and mixing chamber design
- Control system and automation level
- Power supply (electric or diesel)
Machines designed for continuous industrial operation typically cost more than compact models for small projects.
Click Here to Get A Free Quote
How to Choose the Right Polyurethane Spray Machine?
When selecting a polyurethane spray machine, matching the equipment to actual project needs is more important than choosing the highest specification.
Key selection considerations:
- Primary application (insulation, waterproofing, or both)
- Required daily output and working hours
- Ambient temperature and site conditions
- Transportability and power availability
- Maintenance accessibility and spare parts support
A properly matched machine improves application quality and reduces long-term operating costs.
Maintenance and Operation Considerations
Routine maintenance is essential for stable performance and service life.
Basic maintenance practices include:
- Daily flushing after spraying
- Regular inspection of seals and filters
- Monitoring hose heating performance
- Cleaning spray gun mixing chambers
With correct operation and routine servicing, a polyurethane spray machine can operate reliably for years.
Click Here to Get A Free Quote
FAQ – Polyurethane Spray Machine
Q1: Can one machine spray both polyurethane and polyurea materials?
Yes. With proper configuration and calibration, one machine platform can handle both materials.
Q2: What is the typical polyurethane spray machine price range?
Prices vary depending on pressure, output, and heating capacity. Quotations are usually based on application requirements.
Q3: Is this machine suitable for small projects?
Yes. Compact models are available for small and medium-scale insulation projects.
Q4: What projects are not suitable for polyurethane spray machines?
Low-budget manual insulation projects or applications requiring only thin decorative coatings may not require spraying equipment.
Q5: How often does maintenance need to be performed?
Daily cleaning and scheduled inspection are recommended. Maintenance frequency depends on usage intensity and material type.
Click Here to Get A Free Quote
Polyurethane Spray Machines from YG Machinery
YG Machinery provides polyurethane and polyurea spraying solutions for construction and industrial applications.
Our capabilities include equipment customization, stable configuration matching, and long-term technical support.
Understanding application requirements, configuration differences, and operating conditions is essential when selecting a polyurethane spray machine.
With the right system and proper maintenance, the equipment delivers consistent performance across insulation and protective coating projects.
