YG Machinery offers a comprehensive range of construction machinery designed for contractors, builders, and rental companies worldwide. Our equipment ensures reliable performance, durability, and cost-effectiveness for projects of all scales, from road construction and foundation works to industrial installations and demolition.
Advantages of YG Construction Machinery
YG construction machinery provides practical value for diverse construction needs:
- Reliability: Machines are built with high-quality components for consistent performance.
- Efficiency: Designed to reduce labor and operation time on-site.
- Versatility: Suitable for multiple applications, including residential, commercial, and industrial projects.
- Mobility: Many machines offer compact, mobile designs for easy transport and operation.
Click Here to Get A Free Quote
Applications of Construction Machinery
Our construction equipment covers a broad spectrum of construction tasks:
- Site Preparation and Earthwork: Excavators, mini loaders, and compact skid steer machines for digging, grading, and material handling.
- Concrete Works: Mixers, pumps, and vibrating equipment for slabs, beams, and foundation projects.
- Lifting and Access: Aerial lifts, scissor lifts, and boom lifts for building maintenance and installation work.
- Dust Control and Cleaning: Fog cannon machines and road sweepers for environmental compliance and site safety.
- Specialized Tasks: Solar piling machines, drilling rigs, and spraying equipment for renewable energy and industrial projects.
Click Here to Get A Free Quote
Hot Sale Equipment Overview

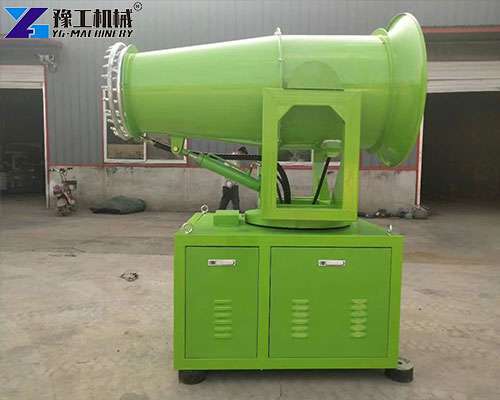

Fog Cannon
- Key Features: Long spray range, adjustable water flow, remote control.
- Applications: Construction sites, demolition projects, roadworks.
| Model | YG-20 | YG-30 | YG-40 | YG-60 |
| Spraying distance | 20m | 30m | 40m | 60m |
| Engine | electric | electric | electric | electric |
| Electric | 380V/50HZ,3 phase | 380V/50HZ,3 phase | 380V/50HZ,3 phase | 380V/50HZ,3 phase |
| Fan motor | 3kw | 3kw | 4kw | 11kw |
| Steering motor | 2*1.5kw | 2*1.5kw | 2*1.5kw | 2*1.5kw |
| Pump motor | 1.5kw | 1.5kw | 2.5kw | 7.5kw |
| Horizontal angle | 360° | 360° | 360° | 360° |
| Vertical angle | Minus10°-55° | Minus10°-55° | Minus10°-55° | Minus10°-55° |
| The nozzle | 8 | 10 | 16 | 22 |
| Cylinder material | Q235 Carbon steel | Q235 Carbon steel | Q235 Carbon steel | Q235 Carbon steel |
| Bucket | 460L | 480L | 800L | |
| Water consumption | 1000L/h | 1500L/h | 3000L/h | 7500L/h |
| Recycled water pipe | 1400mm | 1400mm | 1400mm | 1400mm |
| The machine size | 1170*940*1700mm | 1170*940*1800mm | 1650*1200*2200mm | 1700*1200*2200mm |
| Weight | 200kg | 250kg | 300kg | 350kg |

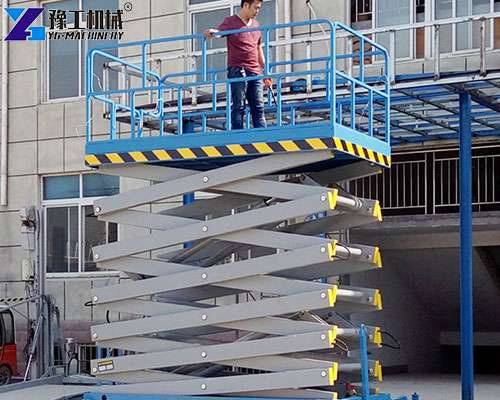

Aerial Lift / Scissor Lift
- Key Features: Electric or hydraulic operation, compact footprint, high load capacity.
- Applications: Indoor maintenance, warehouse management, industrial installations.
| Model | Load Weight (kg) | Working Height (m) | Max Platform Height (m) | Dimensions (mm) | Platform Size (mm) | Total Weight (kg) |
| YGY0.5-4 | 500 | 6 | 4 | 2260*950*1100 | 2100*800 | 800 |
| YGY0.5-6 | 500 | 8 | 6 | 2260*950*1210 | 2100*800 | 850 |
| YGY0.5-8 | 500 | 10 | 8 | 2260*1050*1330 | 2100*900 | 1050 |
| YGY0.3-16 | 300 | 16 | 14 | 3100*1820*2080 | 2810*1600 | 3300 |
Click Here to Get A Free Quote

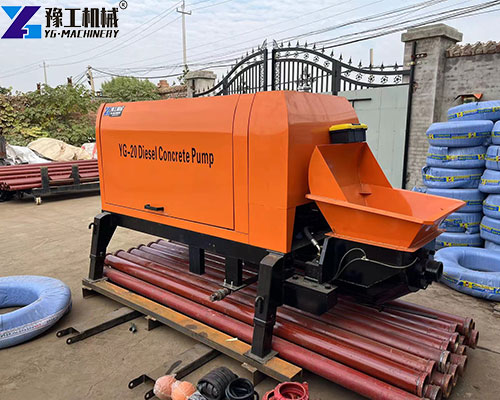

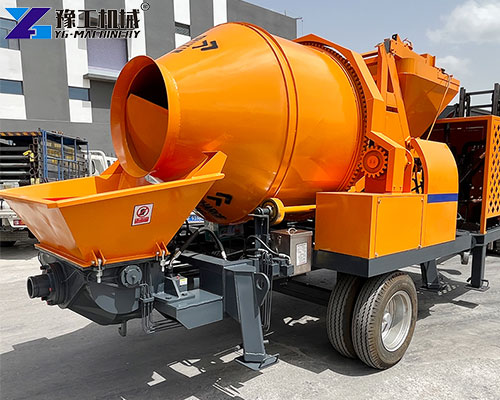

Concrete Mixer & Pump
- Key Features: High mixing capacity, strong pumping pressure, mobile options.
- Applications: Residential, commercial, and industrial construction.
| Model concrete pump | YG-20 | YG-30 | YG-40 | YG-50 |
| Motor power | 22KW | 37KW | 45KW | 55kw |
| Maximum outlet pressure | 26mpa | 28mpa | 28mpa | |
| Maximum theoretical throughput | 16-18m³/h | 20-22m³/h | 35m³/h | |
| The maximum particle size of aggregate | ≤20mm | ≤30mm | ≤40mm | |
| Vertical conveying distance | 40m | 80m | 120m | 150m |
| Horizontal conveying distance | 80m | 140m | 2600m | 300m |
| Diameter of conveying pipe | 80mm | φ80 (100) mm | φ100 (80) mm | Φ125/100mm |
| Whole machine weight | 1600kg | 2200kg | 2400kg | 2500kg |
| Dimensions | 3400x1200x1600mm | 3600x1500x1600mm | 4000x1500x1550mm | 4200*1700*1750mm |
Click Here to Get A Free Quote

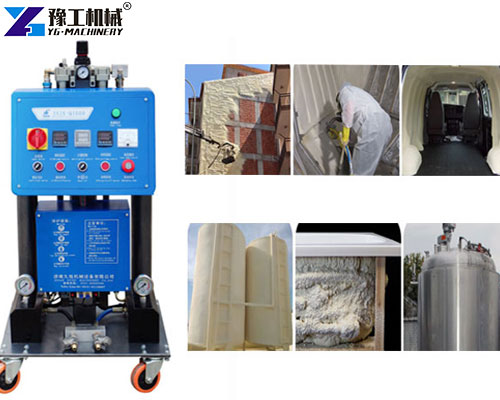

Polyurethane Spray Machines
- Key Features: High-pressure proportioning system, precise material control, stable spraying performance.
- Applications: Polyurethane coating, waterproofing projects, industrial surface protection.
| Project | YGMC-500 high configuration PU Machine |
| Proportion Fixed Mainframe | 1 set |
| Self-cleaning spray gun | 1 set |
| Gross weight | 300KG |
| Net weight | 250KG |
| Feed pump | 2 sets |
| Heated hose | 49.2 ft (15 m) |
| Data ratio of raw materials | 1: 1 (fixed) |
| Raw material viscosity range | 200-1000CPS (at working temperature) |
| Max Working pressure | 35MPa (350 bar) |
| Maximum Fluid Temperature | 88 ° C (190 ° F) |
| Maximum output | 24kg/min (42 lb/min) |
| Each heater power | 6000W |
| Heating hose power | 1000W / 15m |
| Total power | 15000W |
| Voltage | 230V 1-ph / 3-ph 220V/400V 3-ph |
| Machine size | 870mm* 700mm* 1150mm |

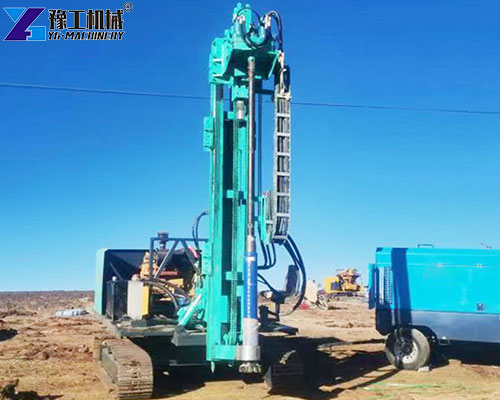

Solar Piling Machines
- Key Features: High installation accuracy, adjustable hammering depth, robust design.
- Applications: Solar farm installations, renewable energy projects.
| Telescopic sliding photovoltaic pile driver | |||
| Overall dimensions | 4700*2800*2800mm | Drill pipe rotational speed | 180r/min |
| Track shoe width | 400mm | gradeability | 45° |
| motor | 4108 | rock hardness | 6-20F |
| Drilling diameter | 80-600mm | Slide tilt angle | 120° |
| Drilling depth | 0-6m | Drill arm swing angle | left and right150° |
| Reducer torque | 13000n.m | Slide swing angle | left and right40° |
| Mainstream pump | triple pump | Driving speed | 0-3km/h |
| oil pump | 40/40/32 | Crawler height telescopic size | 80mm |
Click Here to Get A Free Quote
Global Reach of YG Construction Machinery
YG Machinery’s construction equipment has been successfully delivered to over 200 countries worldwide, supporting projects across Asia, Europe, Africa, and the Americas. Our machines are proven in diverse working conditions, from tropical climates to cold regions, and on urban, rural, and industrial construction sites.
- Reliable Shipping & Logistics: Machines are carefully packaged and shipped via sea, air, or land transport, ensuring timely delivery and minimal damage.
- International Compliance: All equipment meets international safety and operational standards, providing confidence for overseas contractors.
- Technical Support Across Borders: YG provides multilingual technical assistance, spare parts, and online guidance to ensure smooth operation globally.
- Proven Track Record: From road construction in Southeast Asia to renewable energy projects in Europe, YG machinery has consistently improved efficiency and reduced labor costs.
This global presence demonstrates YG’s reliability, manufacturing quality, and commitment to international customers, giving new buyers confidence when selecting our construction machinery for their projects.
Click Here to Get A Free Quote
Why Choose YG Machinery?
YG Machinery combines engineering expertise with manufacturing excellence:
- Factory Direct Supply: Competitive pricing with no middlemen.
- Comprehensive Product Range: Equipment from small tools to large-scale machinery.
- High Quality: Machines built to meet international standards and long-term durability.
- Global Service: Delivery to over 20 countries with technical support and after-sales guidance.
How to Choose the Right Construction Machinery?
Selecting the proper equipment depends on project-specific factors:
- Project Size: Larger projects may require high-capacity machinery, while compact equipment suits smaller sites.
- Worksite Conditions: Terrain, accessibility, and environmental factors influence the choice of machinery.
- Operational Needs: Consider whether electric, hydraulic, or hybrid machines better fit your workflow.
- Concrete or Material Requirements: Ensure pumps, mixers, or vibrating machines meet the volume and material specifications.
- Maintenance Access: Machines with easy-to-service components reduce downtime and long-term costs.
Click Here to Get A Free Quote
FAQ About Construction Machinery
Q1: How long does delivery take?
A1: Standard machines are typically shipped within 7–15 days. Customized equipment may require additional lead time.
Q2: Can construction machinery be customized?
A2: Yes. YG offers custom configurations, attachments, and modifications to meet project requirements.
Q3: What kind of after-sales support is available?
A3: Technical guidance, spare parts supply, and online support are provided worldwide.
Q4: How do I select the correct machine for my project?
A4: Assess project size, terrain, material handling needs, and operational efficiency. YG experts can provide recommendations.
Q5: Are the machines energy-efficient and safe?
A5: Yes. Machines are designed to meet international safety standards, with durable, energy-efficient components.
Click Here to Get A Free Quote
Contact YG Machinery
For inquiries, quotations, or detailed specifications, contact us to find the best construction machinery for your project.【WhatsApp/WeChat/Phone】+86 13837115193.
- Request a Quote: Access personalized recommendations and the latest product price list.
- Worldwide Delivery: YG Machinery ships to over 20 countries with professional support.
