A wire saw cutting machine is a precision cutting system that uses a diamond-coated wire to cut concrete, reinforced concrete, stone, and large structural materials with high accuracy and minimal vibration. It is widely used in construction, demolition, renovation, and infrastructure projects where controlled, low-impact cutting is required.
Wire Saw Cutting Machine Parameters

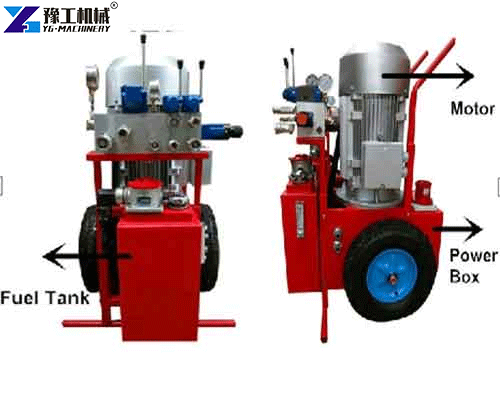

| Wire Saw Wheel Parameters | Hydraulic Pump Parameters | ||
| Wire Drive Mode | hydraulic | Motor Power | 22/25kw |
| Motor Type | HM-80, 2 Cylinders | Voltage | 220V/380V, 50Hz |
| Minimum Input Power | 25HP/33HP | Hydraulic Pump Type | Gear Pump |
| Output Shaft Speed | 350/940/1300r/min | Main Drive Motor | 40-100L/min |
| Maximum Wire Length | 20m | Working Pressure | 15-20Mpa |
| Feeding Method | Fully hydraulic | Oil Tank Capacity | 17L |
| Wire Saw Wheel Weight | 64kg | Weight | 160kg |
| Motor Weight | 14kg | Size | 700*700*1200mm |
| Size | 1700*700*800mm |
Click Here to Get A Free Quote
What Is a Wire Saw Cutting Machine?
A wire saw cutting machine consists of a driving unit, diamond wire, guide pulleys, and a control system. The machine drives the diamond wire saw cutting loop at high speed, allowing the diamond beads to gradually grind and cut through hard materials.
Compared with traditional blade saws or breakers, wire saw systems can cut large thicknesses and complex shapes without size limitations.
Commonly used variants include:
- diamond wire saw for concrete
- electric or hydraulic wire saw systems
- fixed or portable wire saw cutting machines
Click Here to Get A Free Quote
Key Advantages of Wire Saw Cutting Machines
Wire saw cutting technology offers several practical advantages in real construction environments.
High Precision and Clean Cutting
- Smooth cutting surface with minimal chipping
- Suitable for precise structural separation
Low Vibration and Low Noise
- Reduces structural stress
- Safe for nearby buildings and sensitive structures
Strong Cutting Capacity
- Easily cuts reinforced concrete, stone, and steel-embedded materials
- No limitation on cutting depth
Flexible and Versatile Operation
- Suitable for horizontal, vertical, and inclined cutting
- Can operate in confined or irregular spaces
Improved Safety
- Remote control operation available
- Reduces operator exposure to dust and vibration
Click Here to Get A Free Quote

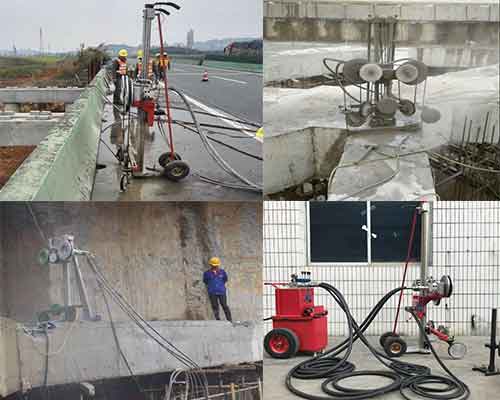

Typical Applications of diamond wire saw cutting
Wire saw cutting machines are used across multiple industries and project types.
Construction and Demolition
- Concrete wall cutting
- Bridge dismantling
- Building renovation and reconstruction
Infrastructure Projects
- Tunnel openings
- Dam and pier cutting
- Road and foundation modification
Industrial and Special Projects
- Nuclear facility renovation
- Power plant maintenance
- Heavy industrial concrete cutting
The diamond wire saw for concrete is especially suitable for projects requiring controlled demolition without damaging surrounding structures.
Click Here to Get A Free Quote
How a Wire Saw Cutting Machine Works?
The working process of a wire saw cutting machine follows a controlled mechanical principle.
- The diamond wire is installed around the cutting object
- Guide pulleys align the wire path
- The drive unit pulls the wire at constant speed
- Diamond beads grind the material continuously
- Cooling water reduces heat and dust
This method allows continuous cutting regardless of material thickness or reinforcement density.
Factors That Affect the Diamond Wire Saw Price
The diamond wire saw price varies depending on configuration and performance requirements. Key factors include:
- Power system: electric vs hydraulic
- Motor power and torque capacity
- Wire length and bead quality
- Maximum cutting capacity
- Control system (manual or remote)
- Cooling and safety systems
Industrial-grade machines designed for continuous operation typically represent a higher investment than compact or entry-level models.
Click Here to Get A Free Quote
How to Choose the Right Wire Saw Cutting Machine?
Selecting the right model depends on project conditions rather than price alone.
Consider the following factors:
- Material type and reinforcement level
- Required cutting depth and speed
- Available power source on site
- Workspace limitations
- Frequency of use and project scale
- Maintenance and spare parts availability
For heavy reinforced concrete projects, a high-torque diamond wire saw cutting system with stable cooling and tension control is recommended.
Maintenance and Operating Considerations
Proper maintenance ensures stable performance and long service life.
- Inspect diamond wire wear regularly
- Maintain proper wire tension
- Ensure sufficient water cooling
- Check pulleys and bearings
- Clean the drive system after operation
Routine inspection reduces downtime and improves cutting consistency.
Click Here to Get A Free Quote
FAQ about wire saw cutting machine
Q1: What is the typical diamond wire saw price range?
Prices usually range from USD 3,000 to over USD 15,000, depending on power type, cutting capacity, and configuration.
Q2: What is the difference between electric and hydraulic wire saws?
Electric models are suitable for general construction, while hydraulic systems provide higher torque for heavy industrial applications.
Q3: What materials can a wire saw cutting machine cut?
Concrete, reinforced concrete, stone, masonry, and steel-embedded structures.
Q4: Is the wire saw suitable for confined spaces?
Yes. The compact layout and flexible wire path make it ideal for limited or irregular spaces.
Q5: How often does the diamond wire need replacement?
Replacement frequency depends on material hardness, cutting speed, and cooling conditions.
Click Here to Get A Free Quote
YG Machinery Wire Saw Cutting Solutions
YG Machinery provides professional wire saw cutting machine solutions for construction and industrial users worldwide. With strong manufacturing capability and engineering experience, YG offers:
- Electric and hydraulic wire saw systems
- High-quality diamond wire saw for concrete
- Stable power units for continuous cutting
- Optional remote control and safety systems
- Technical support and configuration guidance
YG focuses on practical performance, reliability, and application adaptability, helping customers complete complex cutting tasks efficiently and safely.
