A dredging robot is an advanced underwater cleaning machine designed to efficiently remove sludge, silt, and sediment from rivers, lakes, ponds, industrial tanks, and enclosed water bodies. Compared with traditional dredging methods, dredging robots provide higher precision, better safety, and lower operating risk, making them an increasingly preferred solution for modern underwater maintenance.
Also known as a sludge cleaning robot or underwater dredging robot, this equipment is especially suitable for confined spaces, shallow water areas, and sensitive industrial environments.
Click Here to Get A Free Quote
What Makes a Dredging Robot Superior to Traditional Dredging?
The core advantage of a dredging robot lies in its controlled, non-invasive, and automated operation, which solves many long-standing problems of conventional dredging.
Key Advantages of Dredging Robots
- High Precision, Minimal Disturbance
Unlike large dredgers that stir up water and spread pollution, a dredging robot works close to the sediment layer, reducing turbidity and secondary contamination. - Safer Operation
Remote control and real-time visual monitoring eliminate the need for divers, significantly improving safety in deep, polluted, or hazardous environments. - Compact and Portable Design
Many models function as a portable robotic dredge, allowing easy transportation, quick deployment, and flexible operation across multiple sites. - Lower Long-Term Cost
Reduced labor demand, lower fuel consumption, and minimal site preparation result in better cost control over the full lifecycle. - Suitable for Special Industrial Conditions
Explosion-proof systems and sealed electric designs allow dredging robots to operate safely in chemical plants, oil facilities, and wastewater systems.
Click Here to Get A Free Quote
Dredging Robot Parameters
| Parameter | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | 1500*500*650 | 1500*600*650 | 1600*700*650 | 1600*850*700 | 1650*960*750 | 1900*1200*750 |
| Dredging Width (mm) | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 4 | 4 | 4 | 4or6 |
| Pump Flow (m³/h) | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150m) |
| Hydraulic Station Dimensions (mm) | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main Motor Power (kW) | 18 | 18 | 22 | 22 | 22 | 45KW (50KW) or Diesel 76KW (123KW) |
| Hydraulic System Pressure (Mpa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Not specified |
| Particle Size (mm) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30m/pack, 20kg pressure resistant, optional |
| Control System | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 |
Click Here to Get A Free Quote
Common Application Scenarios of Dredging Robots
Dredging robots are widely used across both public and industrial sectors due to their adaptability and safety.
Municipal & Environmental Applications
- Urban rivers and canals desilting

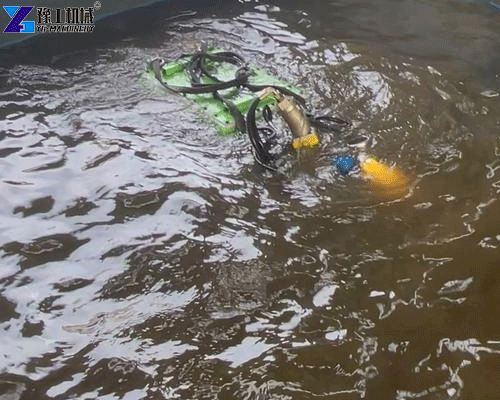

- Lakes, ponds, and reservoirs maintenance
- Ecological dredging and sediment control
- Flood prevention and water flow restoration
Industrial & Commercial Applications

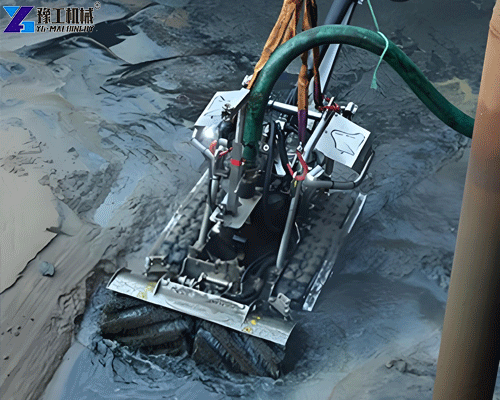

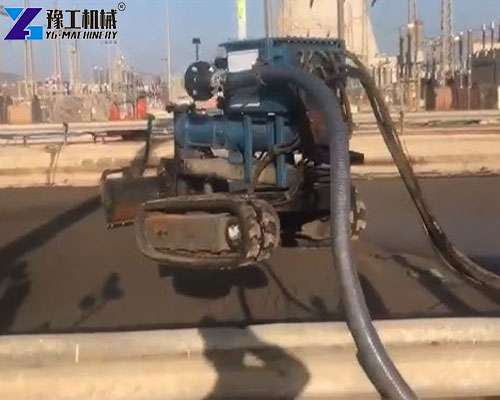

- Industrial wastewater treatment tanks
- Cooling ponds and sedimentation basins
- Power plant and steel plant water systems
Chemical Plants & Oil-Related Facilities
In chemical factories, oil depots, and pipeline facilities, safety requirements are extremely strict. These sites often contain:
- Flammable gases
- Volatile chemicals
- Confined or enclosed water spaces
For such applications, dredging robots equipped with explosion-proof motors and sealed electrical systems are essential.
Ports, Harbors & Marinas
- Dock sediment removal
- Navigation channel maintenance
- Marina and shipyard cleaning
Click Here to Get A Free Quote

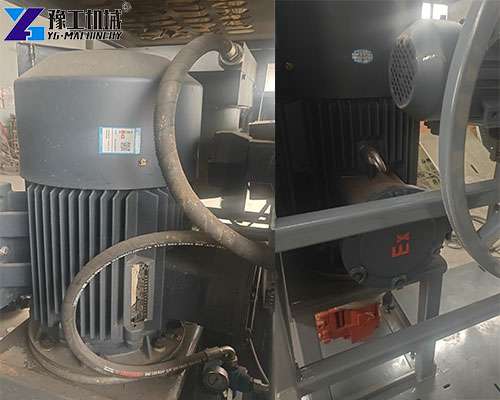

Explosion-Proof Design: A Critical Requirement for Industrial Dredging
Many customers from chemical plants and oil-related industries specifically require explosion-proof configurations.
Why Explosion-Proof Motors Matter?
- Prevent ignition in flammable environments
- Comply with industrial safety standards
- Ensure long-term stable operation
YG dredging robots can be equipped with certified explosion-proof electric motors, combined with waterproof cable systems and sealed control units, ensuring safe, reliable, and compliant operation.
Customers report that these configurations greatly improve operational confidence and reduce safety inspections and downtime.
Click Here to Get A Free Quote
How a Dredging Robot Works?
A typical underwater dredging robot follows a controlled and efficient working process:
- The robot is positioned at the target sediment area
- Suction or cutting systems loosen and collect sludge
- Sediment is transferred via pipeline or pump
- Operators monitor the process through cameras and sensors
- The robot moves steadily using a tracked or wheeled system
YG models emphasize stable traction, precise positioning, and smooth sludge removal, even on uneven underwater terrain.
Click Here to Get A Free Quote
YG Dredging Robot Solutions: Designed for Real Projects
YG Machinery does not provide one-size-fits-all products. Instead, it delivers project-oriented dredging robot solutions.
Configurations and Technologies
Explosion-Proof Motor System
- Designed for chemical plants and oil facilities
- Enhanced electrical sealing and safety protection
Visual Monitoring System
- Underwater cameras with real-time transmission
- Clear visibility in low-light and turbid conditions
Remote Control & Optional Automation
- Safe distance operation
- Stable signal transmission for complex environments
Tracked Walking System
- Strong grip on muddy or uneven surfaces
- Smooth movement in shallow and confined water bodies
Modular & Portable Design
- Easy transport between sites
- Fast assembly and maintenance
Click Here to Get A Free Quote
How to Choose the Right Model?
When selecting a dredging robot or sludge cleaning robot, consider:
- Water body type: depth, sediment type, and obstacles
- Required cleaning speed and efficiency
- Transport and storage constraints
- Power availability on-site
- Maintenance requirements and service support
Click Here to Get A Free Quote
FAQs about sludge cleaning robot
Q1: What is the price range of dredging robots?
A: Prices range from $8,000 for small portable models to over $80,000 for large industrial units, depending on size, features, and capacity.
Q2: What are the main configuration differences?
A: Differences include suction power, dredging depth, control type (remote vs. autonomous), and included sensors or cameras.
Q3: Where can these robots be applied?
A: Suitable for ponds, lakes, canals, reservoirs, marinas, wastewater treatment plants, and industrial water bodies.
Q4: How is maintenance performed?
A: Regularly clean pumps, inspect hoses and dredging arms, lubricate moving parts, and check electronic sensors for damage.
Click Here to Get A Free Quote
Why Choose YG Dredging Robot Solutions?
As a professional manufacturer and global supplier of dredging robots and underwater cleaning equipment, YG Machinery is committed to providing reliable, efficient, and cost-effective solutions for sludge removal and sediment management. With years of engineering experience and a mature production system, YG designs dredging robots that are stable in operation, easy to maintain, and adaptable to diverse underwater environments.
YG dredging robot solutions are widely used in ponds, lakes, canals, reservoirs, industrial wastewater systems, and municipal water projects, serving customers in multiple countries and regions. From compact portable robotic dredge units to customized underwater dredging robot systems, YG offers flexible configurations to meet different project requirements.
Backed by strict quality control, technical support, and responsive after-sales service, YG helps customers reduce labor risks, improve dredging efficiency, and lower long-term operating costs. If you are looking for a dependable sludge cleaning robot or a professional dredging robot solution tailored to your project, YG Machinery is a trusted partner worth choosing.
