Street sweeper machine is a mechanical cleaning system designed to remove dust, debris, and waste from roads, industrial areas, and indoor floors using sweeping, suction, or combined cleaning methods. It is widely used by municipalities, contractors, factories, and property managers to improve cleanliness, safety, and operational efficiency.
What Is a street sweeper machine?
It is a powered cleaning vehicle or equipment that collects solid waste from ground surfaces through rotating brushes, vacuum systems, or water-assisted sweeping. Compared with manual cleaning, it provides consistent results, lower labor dependency, and higher cleaning efficiency.
they s are suitable for:
- Municipal road maintenance departments
- Industrial parks and logistics centers
- Commercial properties and warehouses
- Airports, campuses, and parking facilities
YG Machinery designs and manufactures multiple categories of street sweeper machines to meet different operating environments and cleaning intensities.
Click Here to Get A Free Quote
Main Types of street sweeper machines by YG Factory
YG factory produces a complete range of street sweeper machines, categorized by size, power source, and application scenario.

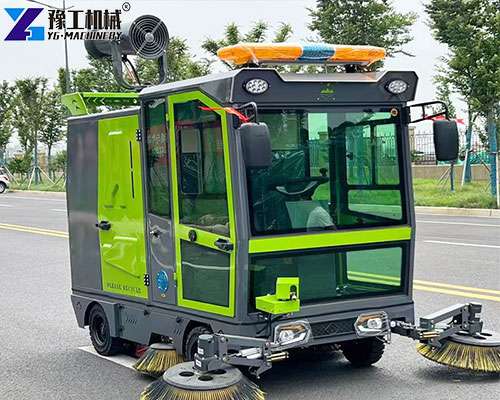

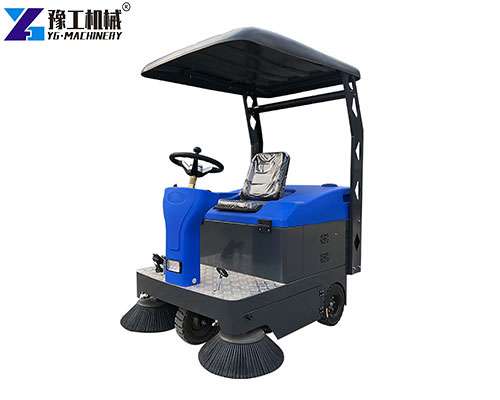

- Mini Road Sweeper
A mini road sweeper is a compact cleaning machine designed for narrow streets, sidewalks, residential areas, and small commercial spaces.
Key characteristics:
- Compact body for tight spaces
- Low noise operation
- Easy maneuverability
- Lower energy consumption
Typical applications include pedestrian zones, residential communities, parks, and school campuses.

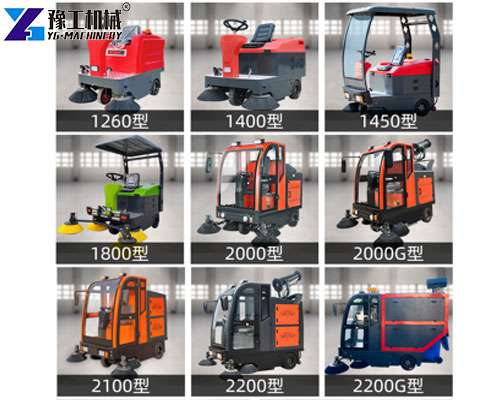

| Electric Models | YG1260 | YG1400 | YG1800 | YG2000 | YG2200 | YG2300 |
| Cleaning Width (mm) | 1260 | 1400 | 1800 | 2000 | 2200 | 2000–2300 |
| Main Brush Width (mm) | 500 | 700 | 700 | 700 | 800 | 800 |
| Side Brush Diameter (mm) | 450 | 500 | 500 | 500 | 600*2 + 500*2 | 600*2 + 500*2 |
| Water Tank Capacity (L) | 30 | 130 | 130 | 100 | 240 | 300 |
| Garbage Bin Capacity (L) | 80 | 120 | 120 | 220 | 240 | 260 |
| Battery (V/Ah) | 48V45Ah / 52Ah | 48V52Ah / 80Ah | 48V52Ah–80Ah | 48V100Ah | 48V100Ah–200Ah | 48V150Ah–200Ah |
| Working Efficiency (㎡/h) | 6500 | 8500 | 10000 | 14500 | 18500 | 22000 |
| Working Time (h) | 3–4 | 3–4 | 3–4 | 4–5 | 6–8 | 6–8 |
| Travel Speed (km/h) | 8–12 | 8–12 | 8–12 | 10–15 | 12–16 | 12–16 |
| Drive Motor (W) | 700 | 800 | 800 | 1500 | 2200 | 3000 |
| Main Brush Motor (W) | 500 | 500 | 800 | 1000 | 1000 | 1000 |
| Fan Motor (W) | 500 | 500 | 500 | 500 | 500*2 | 500*4 |
| Weight (kg) | 300 | 480 | 520 | 950 | 1500 | 1580 |
| Product Size (mm) | 1500*1160*1200 | 1600*1400*1250 | 2050*1800*1980 | 2250*1900*2100 | 3000*2150*2500 | 3200*2100*2950 |
Click Here to Get A Free Quote

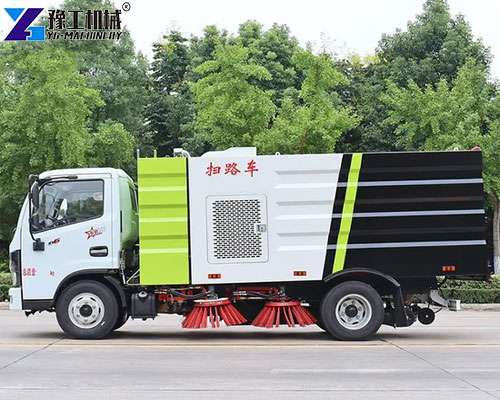

- Road Sweeper Truck
A road sweeper truck is a heavy-duty street cleaner machine mounted on a truck chassis. It is designed for long-distance and large-area cleaning tasks.
Key characteristics:
- Large debris hopper capacity
- High sweeping width
- Strong suction and dust control system
- Suitable for continuous operation
Road sweeper trucks are commonly used on urban roads, highways, industrial zones, and municipal main streets.
| road sweeper truck Specification | Value |
| Vehicle Model | YG Road Sweeper Truck |
| Chassis Model | EQ1125SJ8CDC |
| Gross Weight | 11995 kg |
| Curb Weight | 7400 kg |
| Rated Load Capacity | 4400 kg |
| Wheelbase | 3800 mm |
| Clean Water Tank Volume | 4 m³ |
| Garbage Box Volume | 5 m³ (Stainless steel) |
| Tire Model | 245/70R19.5 / 8.25R20 |
| Sweeping Width | 2800-3200 mm |
| Emission Standard | GB3847-2005, GB17691-2018 China VI |
| Vehicle Dimensions (L×W×H) | 7000×2200×2700 mm |
| Main Engine Model (Chassis Engine) | Yunnei D25TCIF1, Yuchai YCY30165-60 (optional) |
| Horsepower (Main Engine) | Yunnei 150 HP, Yuchai 165 HP |
| Displacement (Main Engine) | Yunnei 2499 ml, Yuchai 2970 ml |
| Auxiliary Engine Model & Manufacturer | B140 33 (Dongfeng Cummins Co., Ltd.) |
| Auxiliary Engine Power | 102 kW |
| Auxiliary Engine Horsepower | 140 HP |
| Auxiliary Engine Displacement | 3200 ml |
| Sweeping Speed | 3-15 km/h |
| Maintenance Speed | 15-20 km/h |
| Max Sweeping Capacity | 38000 m²/h |
| Density | 2.0 g/cm³ |
| Garbage Box Dumping Angle | ≥30° |
| Sweeping Efficiency | ≥96% |
| Operating Noise | <88 dB (Compliant with GB7258) |
| Sweeping System Type | Two symmetrical lifting and extending side brushes driven by hydraulic motors |
| Main Components | Brush holder, brush, oil cylinder, hoses, linkages, hydraulic motor |
| Brush Expansion Diameter | φ800-900 mm |
| Brush Motor Speed | 140 r/min |
| Number of Brushes | 2 |
| Brush Tilt Adjustment | Forward tilt 5°-15°, outward tilt 5°-10° |
| Nozzle Device Type | Double suction nozzle with adjustable height and built-in high-pressure spray bar (8 nozzles) |
| Suction Pipe Diameter | φ180 mm |
| Suction Pipe Brand | NORRES |
| Walking Wheel Bearing | SKF |
| Wear-resistant Outer Ring | Stellana |
| Ground Clearance of Nozzle | 5-8 mm |
| Suction Airflow Speed | 50-65 m/s |
| Nozzle Negative Pressure | 380 mmH2O |
| Alarm System | Reverse voice alarm system |
| Auxiliary Control System | Tail-mounted electric control system for lifting and door operation |
| Manual Pump Emergency Lift System | Manual pump system for emergency lifting of brushes and hopper |
Click Here to Get A Free Quote
- Electric Ride-On Floor Sweeper
An electric ride-on floor sweeper is primarily designed for indoor or semi-indoor environments where emissions and noise control are required.
Key characteristics:
- Battery-powered, zero emissions
- Ride-on operation for operator comfort
- Efficient dust collection system
- Suitable for long indoor cleaning cycles
It is widely used in factories, warehouses, logistics centers, underground parking lots, and large workshops.
| Model | YG350 | YG430 | YG530 | YG750 | YG860 | YG1050 |
| Cleaning Width | 350mm | 430mm | 530mm | 550mm | 860mm | 1050mm |
| Dirty Water Tank | 20L | 6.5L | 55L | 85L | 120L | 300L |
| Brush Diameter | 350mm (single) | 210mm*2 | 530mm (single) | 550mm (single) | 430mm*2 | 520mm*2 |
| Brush Motor Power | 300W | 120W | 550W | 550W | 400W*2 | 500W*2 |
| Cleaning Efficiency | 1350 m²/h | 1000 m²/h | 2000 m²/h | 4500 m²/h | 6000 m²/h | 9000 m²/h |
| Vacuum Pressure | 200mbar | 10-12kpa | 200mbar | 220mbar | 220mbar | 380mbar |
| Squeegee Width | 450mm | 450mm | 780mm | 850mm | 1100mm | 1300mm |
| Battery | 24V32A (2 pcs) | 36V8A (LiFePO4) | 24V100A (2 pcs) | 24V100A (2 pcs) | 24V200A (4 pcs) | 36V200A (6 pcs) |
| Continuous Working Time | 2-3h | 1-1.2h | 4-5h | 4-5h | 5-6h | 6-8h |
| Machine Size | 900*580*700mm | 1162*535*285mm | 1290*780*1070mm | 1200*850*1100mm | 1400*1100*1350mm | 2000*1200*1500mm |
| Brush Pressure | 25kg | 6kg | 40kg | 40kg | 86kg | 86kg |
| Machine Weight | 60kg | 18.5kg (net)/23kg (gross) | 195kg | 220kg | 325kg | 580kg |
| Clean Water Tank | 15L | 3.2L | 50L | 80L | 115L | 280L |
| Vacuum Motor Power | 500W | 120-140W | 500W | 500W | 500W | 600W*2 |
Click Here to Get A Free Quote
Key Features of YG street sweeper machines
YG street sweeper machines share several functional design principles focused on reliability and ease of operation.
Common features include:
- Modular brush and suction system for easy maintenance
- Durable steel or reinforced chassis structures
- Optimized airflow design for dust suppression
- Operator-friendly control panels
- Compatibility with different power options (diesel or electric)
These features ensure stable performance across different working conditions and reduce long-term operating costs.
Application Scenarios of street sweeper machine
street sweeper machines are selected based on cleaning area size, surface type, and environmental requirements.
Common use scenarios:
- Urban road and highway cleaning
- Industrial park and factory floor maintenance
- Commercial property and parking lot cleaning
- Airport runways and logistics yards
- Residential and community public areas
In practice, a mini road sweeper is usually chosen for limited spaces, while a road sweeper truck is more suitable for large-scale municipal operations. Meanwhile, electric ride-on floor sweepers are preferred for indoor environments due to their low noise and zero-emission operation.
Click Here to Get A Free Quote
How a street sweeper machine Works?
Most street sweeper machines operate using a combination of mechanical sweeping and vacuum suction.
Basic working process:
- Rotating side brushes guide debris toward the center
- Main brush lifts waste from the surface
- Vacuum system transfers debris into the hopper
- Optional water spray suppresses dust during operation
This process ensures effective cleaning while minimizing airborne dust.
What Affects the Price of a street sweeper machine?
The price of a street sweeper machine depends on technical configuration and operational capacity, not branding alone.
Main price factors include:
- Machine size and cleaning width
- Power system (diesel vs. electric)
- Hopper capacity and filtration system
- Chassis type and drive configuration
- Automation and control system level
In general, a mini road sweeper typically has a lower purchase cost, whereas a road sweeper truck equipped with advanced dust control systems represents a higher investment. As a result, buyers can select the most suitable model based on budget, cleaning requirements, and operational scale.
Click Here to Get A Free Quote
How to Choose the Right street sweeper machine?
Selecting the correct street sweeper machine requires matching the equipment to actual operating needs.
Key selection considerations:
- Cleaning area size and surface condition
- Indoor or outdoor usage requirements
- Emission and noise regulations
- Operator skill level and maintenance capacity
- Budget and long-term operating costs
For indoor industrial environments, an electric ride-on floor sweeper is often the most practical option. Municipal contractors generally prefer road sweeper trucks for efficiency and coverage.
Maintenance and Service Considerations
Routine maintenance directly affects cleaning efficiency and machine lifespan.
Basic maintenance tasks include:
- Regular brush inspection and replacement
- Cleaning or replacing dust filters
- Battery maintenance for electric models
- Hydraulic and vacuum system checks
YG factory designs street sweeper machines with standardized components to simplify servicing and reduce downtime.
Click Here to Get A Free Quote
FAQ: street sweeper machine
1.What is the typical price range of a street sweeper machine?
Prices vary by model and configuration. Mini road sweepers are generally more affordable, while road sweeper trucks and high-capacity electric ride-on floor sweepers require higher investment.
2.What is the difference between a road sweeper truck and a mini road sweeper?
A road sweeper truck is designed for large-scale outdoor cleaning with higher capacity, while a mini road sweeper focuses on flexibility and small-area operation.
3.Can street sweeper machines be used indoors?
Yes. Electric ride-on floor sweepers are specifically designed for indoor use with low noise and zero emissions.
4.How often does a street sweeper machine need maintenance?
Basic inspections are recommended daily, with scheduled maintenance based on operating hours and working conditions.
Click Here to Get A Free Quote
street sweeper machine in YG Machinery
It is a practical and scalable solution for maintaining clean and safe environments across municipal, industrial, and commercial settings. By understanding machine categories, operating principles, and selection criteria, users can choose the most suitable model for their specific cleaning needs.
Moreover, YG Machinery provides a complete range of street sweeper machines, including mini road sweepers, road sweeper trucks, and electric ride-on floor sweepers, thereby meeting diverse operational requirements worldwide. If you are looking for a reliable cleaning solution, please feel free to contact us to learn more details. You can reach our team directly via WhatsApp, WeChat, or Phone: +86 13837115193.
