Are you facing these problems in your sedimentation tanks or sludge treatment systems?
- Frequent shutdowns for manual cleaning
- Heavy sludge accumulation reducing efficiency
- High labor costs and safety risks
- Difficulty cleaning deep or large tanks
In industries such as wastewater treatment plants, industrial sedimentation tanks, mining tailing ponds, and reservoirs, sludge and sediment buildup is unavoidable. Traditional cleaning methods are inefficient, time-consuming, and often require draining the tank.
This is where a desilting robot becomes the ideal solution.
Desilting Robot Parameters
| Parameter | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | 1500*500*650 | 1500*600*650 | 1600*700*650 | 1600*850*700 | 1650*960*750 | 1900*1200*750 |
| Dredging Width (mm) | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 4 | 4 | 4 | 4or6 |
| Pump Flow (m³/h) | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150m) |
| Hydraulic Station Dimensions (mm) | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main Motor Power (kW) | 18 | 18 | 22 | 22 | 22 | 45KW (50KW) or Diesel 76KW (123KW) |
| Hydraulic System Pressure (Mpa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Not specified |
| Particle Size (mm) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30m/pack, 20kg pressure resistant, optional |
| Control System | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 |
What Is a Desilting Robot?
It is an intelligent, remotely operated machine designed to remove sludge, sediment, and solid waste from water bodies without interrupting operations. It is widely used in:
- Wastewater treatment sedimentation tanks
- Industrial sludge tanks
- Mining sedimentation ponds and tailings dams
- Rivers, lakes, and reservoirs
Compared with traditional dredging methods, a remote control robot offers higher efficiency, lower cost, and zero downtime cleaning.
Key Applications of Desilting Robot
- Wastewater Treatment Plants

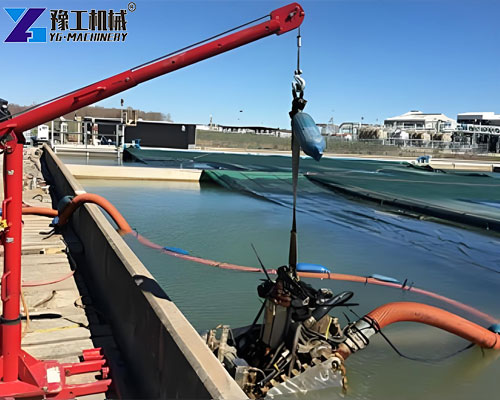

In municipal and industrial wastewater systems, sedimentation tanks accumulate large amounts of sludge. A dredging robot for wastewater treatment plant can continuously remove deposits, ensuring stable system operation.

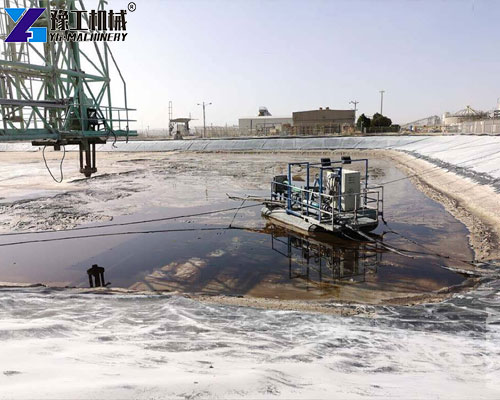

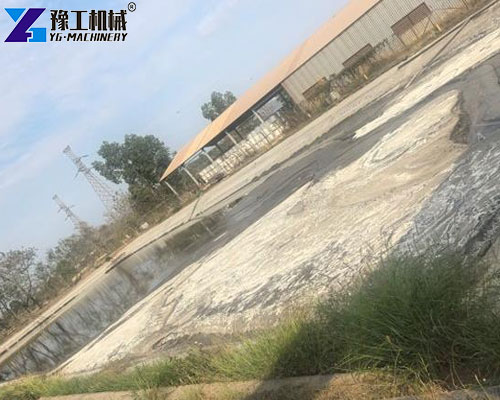

- Sedimentation Tanks in Mining Industry
Mining environments generate massive amounts of slurry and tailings. A robot for sedimentation tank is especially suitable for:
- Tailings ponds
- Ore processing sediment tanks
- Slurry storage basins
It can efficiently remove high-density sludge without draining the tank, improving operational efficiency.
- Industrial Sludge Cleaning
Factories in industries such as chemicals, steel, and food processing often deal with sludge buildup. A sludge removal robot ensures safe and automated cleaning.

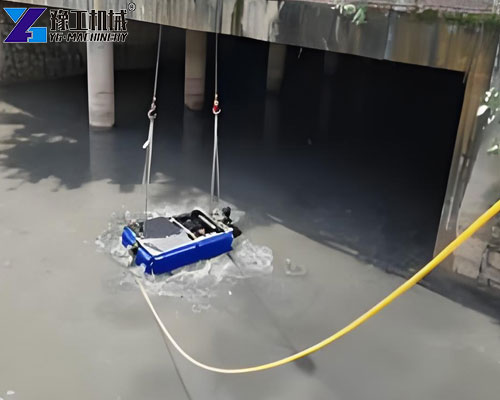

- Rivers, Lakes, and Reservoirs
For environmental protection projects, a dredging robot or silt removal machine can be used for:
- River desilting
- Lake cleaning
- Reservoir maintenance
Core Advantages of Desilting Robot
✔ Remote Control Operation
Equipped with advanced control systems, the remote control desilting robot allows operators to manage cleaning tasks from a safe distance.
✔ No Need to Drain the Tank
Unlike traditional methods, the robot works underwater, eliminating downtime and maintaining continuous production.
✔ Strong Adaptability

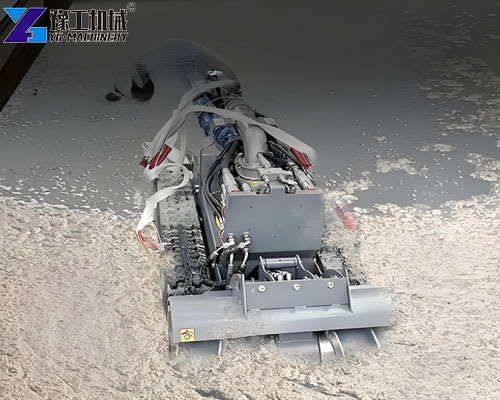

With a tracked chassis design, the robot can move easily on soft sludge surfaces and uneven terrain.
✔ High Efficiency
The high efficiency desilting machine can quickly remove large volumes of sediment, improving overall system performance.
✔ Durable and Waterproof Design
Featuring IP68 waterproof technology, the robot can operate in harsh underwater environments, including deep tanks and mining ponds.
Customer Case: Mining Sedimentation Tank Cleaning
A mining company faced severe sediment accumulation in its tailings pond, which reduced processing efficiency and increased maintenance costs.
After adopting a desilting robot for mining sedimentation tank:
- Cleaning efficiency increased by 60%
- Labor costs reduced by 70%
- No need to stop operations
- Improved environmental compliance
This solution proved to be a reliable and cost-effective alternative to traditional dredging equipment.
How to Choose the Right Desilting Robot?
When selecting a desilting robot manufacturer, consider the following factors:
- Working depth and tank size
- Type of sludge (density, viscosity)
- Control distance requirements
- Customization options
- After-sales support
Choosing a professional supplier ensures long-term reliability and performance.
Desilting Robot Price: What Affects the Cost?
The desilting robot price depends on:
- Machine size and capacity
- Control system complexity
- Customization requirements
- Application environment (industrial, mining, etc.)
👉 Contact a trusted desilting robot supplier like YG Machinery to get a customized quotation.
Why Choose YG Machinery?
At YG Machinery, we provide:
- High-quality desilting robot for sale
- Customized solutions for wastewater and mining industries
- Competitive factory prices
- Global service support in over 20 countries
Our equipment is designed to help customers improve efficiency, reduce costs, and achieve sustainable operations.
FAQ About Desilting Robot
- What is a desilting robot used for?
It is used for removing sludge, sediment, and solid waste from tanks, ponds, and water bodies.
- Can it work in mining environments?
Yes, it is ideal for mining sedimentation tanks and tailings ponds.
- Does it require draining the tank?
No, it operates underwater without interrupting normal operations.
- Is customization available?
Yes, parameters and functions can be customized based on your needs.
Get Your Desilting Robot Today
Looking for a reliable desilting robot for sale?
YG Machinery offers efficient, durable, and cost-effective solutions for wastewater treatment, industrial cleaning, and mining applications.
👉 Contact us now to get the latest price and technical support!
